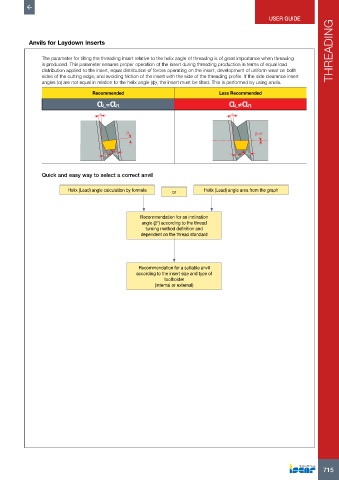

USER GUIDE



           Anvils for Laydown Inserts


                The parameter for tilting the threading insert relative to the helix angle of threading is of great importance when threading   THREADING
                is produced. This parameter ensures proper operation of the insert during threading production in terms of equal load
                distribution applied to the insert, equal distribution of forces operating on the insert, development of uniform wear on both
                sides of the cutting edge, and avoiding friction of the insert with the side of the threading profile. If the side clearance insert
                angles (α) are not equal in relation to the helix angle (φ), the insert must be tilted. This is performed by using anvils.

                                  Recommended                                 Less Recommended
                                   αL=αR                                         αL≠αR

                                    φ                                             φ

                                             β                                             β =0




                                                                                        α R
                                          α R
                                      α L
                                                                                    α L
                Quick and easy way to select a correct anvil

                         Helix (Lead) angle calculation by formula  or   Helix (Lead) angle area from the graph




                                                  Recommendation for an inclination
                                                   angle (β°) according to the thread
                                                    turning method definition and
                                                   dependent on the thread standard





                                                  Recommendation for a suitable anvil
                                                 according to the insert size and type of
                                                           toolholder
                                                       (internal or external)
