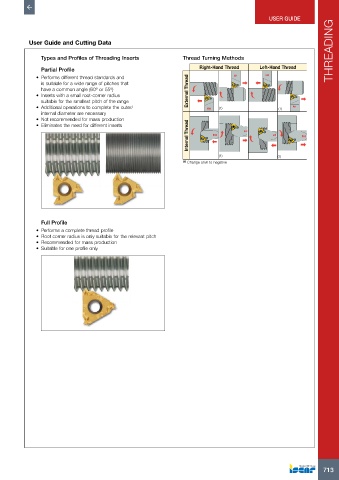

USER GUIDE
                                                                                                                      THREADING


           User Guide and Cutting Data


               Types and Profiles of Threading Inserts           Thread Turning Methods
               Partial Profile                                         Right-Hand Thread    Left-Hand Thread
              •  Performs different thread standards and                           LH         LH
               is suitable for a wide range of pitches that
               have a common angle (60º or 55º)                    External Thread
              •  Inserts with a small root-corner radius
               suitable for the smallest pitch of the range
              •  Additional operations to complete the outer/             RH  (1)                  (1)  RH
               internal diameter are necessary
              •  Not recommended for mass production
                                                                   Internal Thread  RH  LH       LH        RH
              •  Eliminates the need for different inserts




                                                                              (1)                  (1)
                                                                 (1)  Change anvil to negative











               Full Profile
              •  Performs a complete thread profile
              •  Root corner radius is only suitable for the relevant pitch
              •  Recommended for mass production
              •  Suitable for one profile only














































                                                                                                                   713
