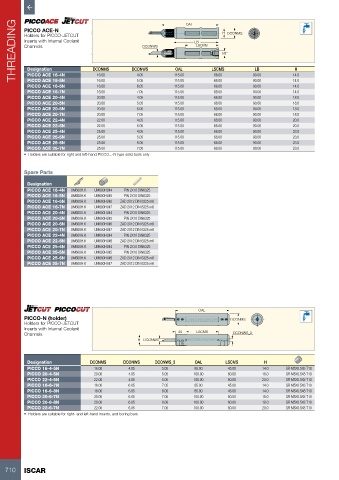

Page 712 - ISCAR(TURNING-CATALOG-42-2022)

THREADING DCONWS OAL LB 1/8" DCONMS
PICCO ACE-N
H
Holders for PICCO-JETCUT
Inserts with Internal Coolant
LSCMS
Channels

Designation
LB
H
OAL
68.00
4.05
PICCO ACE 16-4N
16.00
PICCO ACE 16-5N
16.00
5.05
115.00
90.00
14.0
68.00
PICCO ACE 16-6N DCONMS DCONWS 115.00 LSCMS 90.00 14.0
6.05
16.00
115.00
90.00
68.00
14.0
PICCO ACE 16-7N 16.00 7.05 115.00 68.00 90.00 14.0
PICCO ACE 20-4N 20.00 4.05 115.00 68.00 90.00 18.0
PICCO ACE 20-5N 20.00 5.05 115.00 68.00 90.00 18.0
PICCO ACE 20-6N 20.00 6.05 115.00 68.00 90.00 18.0
PICCO ACE 20-7N 20.00 7.05 115.00 68.00 90.00 18.0
PICCO ACE 22-4N 22.00 4.05 115.00 68.00 90.00 20.0
PICCO ACE 22-6N 22.00 6.05 115.00 68.00 90.00 20.0
PICCO ACE 25-4N 25.00 4.05 115.00 68.00 90.00 23.0
PICCO ACE 25-5N 25.00 5.05 115.00 68.00 90.00 23.0
PICCO ACE 25-6N 25.00 6.05 115.00 68.00 90.00 23.0
PICCO ACE 25-7N 25.00 7.05 115.00 68.00 90.00 23.0
• Holders are suitable for right and left-hand PICCO...-N type solid tools only

Spare Parts
Designation
PICCO ACE 16-4N UM600H.K UM600H.M4 PIN 2X10 DIN6325
PICCO ACE 16-5N UM600H.K UM600H.M5 PIN 2X10 DIN6325
PICCO ACE 16-6N UM600H.K UM600H.M6 ZAD 2X12 DIN 6325 m6
PICCO ACE 16-7N UM600H.K UM600H.M7 ZAD 2X12 DIN 6325 m6
PICCO ACE 20-4N UM600H.K UM600H.M4 PIN 2X10 DIN6325
PICCO ACE 20-5N UM600H.K UM600H.M5 PIN 2X10 DIN6325
PICCO ACE 20-6N UM600H.K UM600H.M6 ZAD 2X12 DIN 6325 m6
PICCO ACE 20-7N UM600H.K UM600H.M7 ZAD 2X12 DIN 6325 m6
PICCO ACE 22-4N UM600H.K UM600H.M4 PIN 2X10 DIN6325
PICCO ACE 22-6N UM600H.K UM600H.M6 ZAD 2X12 DIN 6325 m6
PICCO ACE 25-4N UM600H.K UM600H.M4 PIN 2X10 DIN6325
PICCO ACE 25-5N UM600H.K UM600H.M5 PIN 2X10 DIN6325
PICCO ACE 25-6N UM600H.K UM600H.M6 ZAD 2X12 DIN 6325 m6
PICCO ACE 25-7N UM600H.K UM600H.M7 ZAD 2X12 DIN 6325 m6

OAL
PICCO-N (holder) DCONMS
Holders for PICCO-JETCUT
Inserts with Internal Coolant
Channels 20 LSCMS DCONWS_2
H DCONWS

Designation DCONMS DCONWS DCONWS_2 OAL LSCMS H
PICCO 16-4-5N 16.00 4.05 5.05 85.00 45.00 14.0 SR M5X0.5X6 T10
PICCO 20-4-5N 20.00 4.05 5.05 100.00 60.00 18.0 SR M5X0.5X8 T10
PICCO 22-4-5N 22.00 4.05 5.05 100.00 60.00 20.0 SR M5X0.5X8 T10
PICCO 16-6-7N 16.00 6.05 7.05 85.00 45.00 14.0 SR M5X0.5X6 T10
PICCO 16-6-8N 16.00 6.05 8.00 85.00 45.00 14.0 SR M5X0.5X6 T10
PICCO 20-6-7N 20.00 6.05 7.05 100.00 60.00 18.0 SR M5X0.5X8 T10
PICCO 20-6-8N 20.00 6.05 8.00 100.00 60.00 18.0 SR M5X0.5X8 T10
PICCO 22-6-7N 22.00 6.05 7.05 100.00 60.00 20.0 SR M5X0.5X8 T10
• Holders are suitable for right- and left-hand inserts, and boring bars

710 ISCAR
