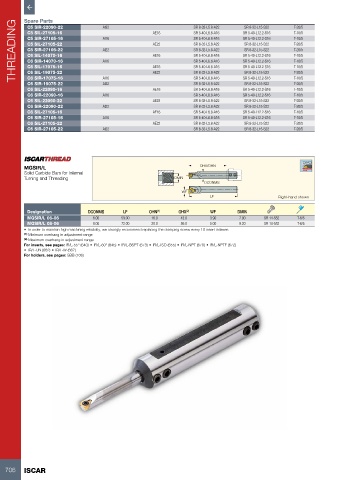

Page 708 - ISCAR(TURNING-CATALOG-42-2022)

THREADING Spare Parts AI22 AE16 SR 8-32-L5.8-A22 SR 5-40-L12.2-S16 T-20/5
SR 8-32-L15-S22
C5 SIR-22090-22
SR 5-40-L6.8-A16
C5 SIL-27105-16
T-10/5
C5 SIR-27105-16
AI16
T-10/5
SR 5-40-L12.2-S16
SR 5-40-L6.8-A16
SR 8-32-L15-S22
C5 SIL-27105-22
T-20/5
SR 8-32-L5.8-A22
AE22
C5 SIR-27105-22
SR 8-32-L5.8-A22
SR 8-32-L15-S22
AI22
T-20/5
C6 SIL-14070-16
T-10/5
SR 5-40-L6.8-A16
AE16
SR 5-40-L12.2-S16
C6 SIR-14070-16
T-10/5
AI16
SR 5-40-L12.2-S16
SR 5-40-L6.8-A16
C6 SIL-17075-16
SR 5-40-L12.2-S16
T-10/5
AE16
SR 5-40-L6.8-A16
C6 SIL-19075-22
SR 8-32-L15-S22
C6 SIR-17075-16
T-10/5
SR 5-40-L6.8-A16
SR 8-32-L15-S22
SR 8-32-L5.8-A22
AI22
C6 SIR-19075-22 AI16 AE22 SR 8-32-L5.8-A22 SR 5-40-L12.2-S16 T-20/5
T-20/5
C6 SIL-22090-16 AE16 SR 5-40-L6.8-A16 SR 5-40-L12.2-S16 T-10/5
C6 SIR-22090-16 AI16 SR 5-40-L6.8-A16 SR 5-40-L12.2-S16 T-10/5
C6 SIL-22090-22 AE22 SR 8-32-L5.8-A22 SR 8-32-L15-S22 T-20/5
C6 SIR-22090-22 AI22 SR 8-32-L5.8-A22 SR 8-32-L15-S22 T-20/5
C6 SIL-27105-16 AE16 SR 5-40-L6.8-A16 SR 5-40-L12.2-S16 T-10/5
C6 SIR-27105-16 AI16 SR 5-40-L6.8-A16 SR 5-40-L12.2-S16 T-10/5
C6 SIL-27105-22 AE22 SR 8-32-L5.8-A22 SR 8-32-L15-S22 T-20/5
C6 SIR-27105-22 AI22 SR 8-32-L5.8-A22 SR 8-32-L15-S22 T-20/5

MGSIR/L OHX/OHN
Solid Carbide Bars for Internal
Turning and Threading DMIN
DCONMS
WF
LF Right-hand shown
Designation DCONMS LF OHN (1) OHX (2) WF DMIN
MGSIR/L 06-06 6.00 59.00 16.0 42.0 3.90 7.00 SR 14-552 T-6/5
MGSIR/L 08-06 8.00 72.00 20.0 56.0 5.00 9.20 SR 14-552 T-6/5
• In order to maintain high machining reliability, we strongly recommend replacing the clamping screw every 10 insert indexes
(1) Minimum overhang in adjustment range
(2) Maximum overhang in adjustment range
For inserts, see pages: IR/L-55° (640) • IR/L-60° (645) • IR/L-BSPT (673) • IR/L-ISO (655) • IR/L-NPT (670) • IR/L-NPTF (672)
• IR/L-UN (662) • IR/L-W (667)
For holders, see pages: SBB (106)
