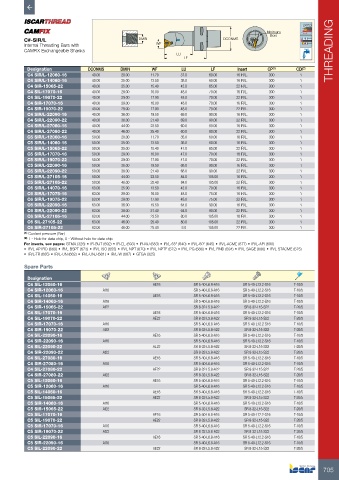

P. 707
Minimum
C#-SIR/L DMIN DCONMS Bore
Internal Threading Bars with WF
CAMFIX Exchangeable Shanks THREADING
LU
LF
Designation DCONMS DMIN WF LU LF Insert CP (1) CDI (2)
C4 SIR/L-12060-16 40.00 20.00 11.70 37.0 60.00 16 IR/L.. 300 1
C4 SIR/L-14060-16 40.00 25.00 13.50 38.0 60.00 16 IR/L.. 300 1
C4 SIR-15065-22 40.00 25.00 15.40 42.0 65.00 22 IR/L.. 300 1
C4 SIL-17070-16 40.00 29.00 16.00 48.0 70.00 16 IR/L.. 300 1
C4 SIL-19070-22 40.00 29.00 17.90 48.0 70.00 22 IR/L.. 300 1
C4 SIR-17070-16 40.00 29.00 16.00 48.0 70.00 16 IR/L.. 300 1
C4 SIR-19070-22 40.00 29.00 17.90 48.0 70.00 22 IR/L.. 300 1
C4 SIR/L-22090-16 40.00 36.00 19.50 69.0 90.00 16 IR/L.. 300 1
C4 SIR/L-22090-22 40.00 38.00 21.40 69.0 90.00 22 IR/L.. 300 1
C4 SIR/L-27080-16 40.00 44.00 23.50 60.0 80.00 16 IR/L.. 300 1
C4 SIR/L-27080-22 40.00 46.00 25.40 60.0 80.00 22 IR/L.. 300 1
C5 SIR/L-12060-16 50.00 20.00 11.70 35.0 60.00 16 IR/L.. 300 1
C5 SIR/L-14060-16 50.00 25.00 13.50 36.0 60.00 16 IR/L.. 300 1
C5 SIR/L-15065-22 50.00 25.00 15.40 41.0 65.00 22 IR/L.. 300 1
C5 SIR/L-17070-16 50.00 29.00 16.00 47.0 70.00 16 IR/L.. 300 1
C5 SIR/L-19070-22 50.00 29.00 17.90 47.0 70.00 22 IR/L.. 300 1
C5 SIR/L-22090-16 50.00 36.00 19.50 68.0 90.00 16 IR/L.. 300 1
C5 SIR/L-22090-22 50.00 38.00 21.40 68.0 90.00 22 IR/L.. 300 1
C5 SIR/L-27105-16 50.00 44.00 23.50 84.0 105.00 16 IR/L.. 300 1
C5 SIR/L-27105-22 50.00 46.00 25.40 84.0 105.00 22 IR/L.. 300 1
C6 SIR/L-14070-16 63.00 25.00 13.50 42.0 70.00 16 IR/L.. 300 1
C6 SIR/L-17075-16 63.00 29.00 16.00 48.0 75.00 16 IR/L.. 300 1
C6 SIR/L-19075-22 63.00 29.00 17.90 48.0 75.00 22 IR/L.. 300 1
C6 SIR/L-22090-16 63.00 36.00 19.50 64.0 90.00 16 IR/L.. 300 1
C6 SIR/L-22090-22 63.00 38.00 21.40 64.0 90.00 22 IR/L.. 300 1
C6 SIR/L-27105-16 63.00 44.00 23.50 80.0 105.00 16 IR/L.. 300 1
C6 SIL-27105-22 63.00 46.00 25.40 80.0 105.00 22 IR/L.. 300 1
C6 SIR-27105-22 63.00 46.00 25.40 8.0 105.00 22 IR/L.. 300 1
(1) Coolant pressure (Bar)
(2) 1 - Hole for data chip, 0 - Without hole for data chip
For inserts, see pages: GTMA (326) • IR-BUT (692) • IR-EL (693) • IR-MJ (683) • IR/L-55° (640) • IR/L-60° (645) • IR/L-ACME (677) • IR/L-API (690)
• IR/L-API RD (689) • IR/L-BSPT (673) • IR/L-ISO (655) • IR/L-NPT (670) • IR/L-NPTF (672) • IR/L-PG (686) • IR/L-RND (694) • IR/L-SAGE (686) • IR/L-STACME (675)
• IR/L-TR (685) • IR/L-UN (662) • IR/L-UNJ (681) • IR/L-W (667) • GTGA (325)
Spare Parts
Designation
C4 SIL-12060-16 AE16 SR 5-40-L6.8-A16 SR 5-40-L12.2-S16 T-10/5
C4 SIR-12060-16 AI16 SR 5-40-L6.8-A16 SR 5-40-L12.2-S16 T-10/5
C4 SIL-14060-16 AE16 SR 5-40-L6.8-A16 SR 5-40-L12.2-S16 T-10/5
C4 SIR-14060-16 AI16 SR 5-40-L6.8-A16 SR 5-40-L12.2-S16 T-10/5
C4 SIR-15065-22 AI22 SR 8-32-L5.8-A22 SR 8-32-L15-S22 T-20/5
C4 SIL-17070-16 AE16 SR 5-40-L6.8-A16 SR 5-40-L12.2-S16 T-10/5
C4 SIL-19070-22 AE22 SR 8-32-L5.8-A22 SR 8-32-L15-S22 T-20/5
C4 SIR-17070-16 AI16 SR 5-40-L6.8-A16 SR 5-40-L12.2-S16 T-10/5
C4 SIR-19070-22 AI22 SR 8-32-L5.8-A22 SR 8-32-L15-S22 T-20/5
C4 SIL-22090-16 AE16 SR 5-40-L6.8-A16 SR 5-40-L12.2-S16 T-10/5
C4 SIR-22090-16 AI16 SR 5-40-L6.8-A16 SR 5-40-L12.2-S16 T-10/5
C4 SIL-22090-22 AE22 SR 8-32-L5.8-A22 SR 8-32-L15-S22 T-20/5
C4 SIR-22090-22 AI22 SR 8-32-L5.8-A22 SR 8-32-L15-S22 T-20/5
C4 SIL-27080-16 AE16 SR 5-40-L6.8-A16 SR 5-40-L12.2-S16 T-10/5
C4 SIR-27080-16 AI16 SR 5-40-L6.8-A16 SR 5-40-L12.2-S16 T-10/5
C4 SIL-27080-22 AE22 SR 8-32-L5.8-A22 SR 8-32-L15-S22 T-20/5
C4 SIR-27080-22 AI22 SR 8-32-L5.8-A22 SR 8-32-L15-S22 T-20/5
C5 SIL-12060-16 AE16 SR 5-40-L6.8-A16 SR 5-40-L12.2-S16 T-10/5
C5 SIR-12060-16 AI16 SR 5-40-L6.8-A16 SR 5-40-L12.2-S16 T-10/5
C5 SIL-14060-16 AE16 SR 5-40-L6.8-A16 SR 5-40-L12.2-S16 T-10/5
C5 SIL-15065-22 AE22 SR 8-32-L5.8-A22 SR 8-32-L15-S22 T-20/5
C5 SIR-14060-16 AI16 SR 5-40-L6.8-A16 SR 5-40-L12.2-S16 T-10/5
C5 SIR-15065-22 AI22 SR 8-32-L5.8-A22 SR 8-32-L15-S22 T-20/5
C5 SIL-17070-16 AE16 SR 5-40-L6.8-A16 SR 5-40-L12.2-S16 T-10/5
C5 SIL-19070-22 AE22 SR 8-32-L5.8-A22 SR 8-32-L15-S22 T-20/5
C5 SIR-17070-16 AI16 SR 5-40-L6.8-A16 SR 5-40-L12.2-S16 T-10/5
C5 SIR-19070-22 AI22 SR 8-32-L5.8-A22 SR 8-32-L15-S22 T-20/5
C5 SIL-22090-16 AE16 SR 5-40-L6.8-A16 SR 5-40-L12.2-S16 T-10/5
C5 SIR-22090-16 AI16 SR 5-40-L6.8-A16 SR 5-40-L12.2-S16 T-10/5
C5 SIL-22090-22 AE22 SR 8-32-L5.8-A22 SR 8-32-L15-S22 T-20/5
