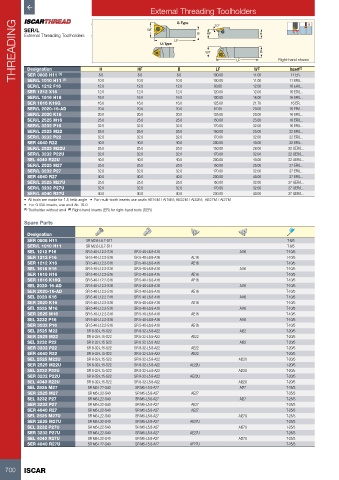

Page 702 - ISCAR(TURNING-CATALOG-42-2022)

External Threading Toolholders

THREADING External Threading Toolholders U-Type LF B WF LF H B Right-hand shown
G-Type
10°
WF
SER/L
HF

H
HF
Insert
WF
LF
B
Designation
(2)
11 ER..
8.0
8.0
8.0
SER 0808 H11
SER/L 1010 H11
100.00
11.00
SER/L 1212 F16 (1) (1) 10.0 10.0 10.0 100.00 11.00 11 ER/L..
12.00
12.0
16 ER/L..
80.00
12.0
12.0
SER 1212 X16 12.0 12.0 12.0 120.00 12.00 16 ER/L..
SER/L 1616 H16 16.0 16.0 16.0 100.00 16.00 16 ER/L..
SER 1616 K16G 16.0 16.0 16.0 125.00 21.70 16 ER..
SER/L 2020-16-AD 20.0 20.0 20.0 67.00 20.00 16 ER/L..
SER/L 2020 K16 20.0 20.0 20.0 125.00 20.00 16 ER/L..
SER/L 2525 M16 25.0 25.0 25.0 150.00 25.00 16 ER/L..
SER/L 3232 P16 32.0 32.0 32.0 170.00 32.00 16 ER/L..
SER/L 2525 M22 25.0 25.0 25.0 150.00 25.00 22 ER/L..
SER/L 3232 P22 32.0 32.0 32.0 170.00 32.00 22 ER/L..
SER 4040 R22 40.0 40.0 40.0 200.00 40.00 22 ER/L..
SER/L 2525 M22U 25.0 25.0 25.0 150.00 28.00 22 UER/L..
SER/L 3232 P22U 32.0 32.0 32.0 170.00 32.00 22 UER/L..
SEL 4040 R22U 40.0 40.0 40.0 200.00 40.00 22 UER/L..
SER/L 2525 M27 25.0 25.0 25.0 150.00 25.00 27 ER/L..
SER/L 3232 P27 32.0 32.0 32.0 170.00 32.00 27 ER/L..
SER 4040 R27 40.0 40.0 40.0 200.00 40.00 27 ER/L..
SER/L 2525 M27U 25.0 25.0 25.0 150.00 32.00 27 UER/L..
SER/L 3232 P27U 32.0 32.0 32.0 170.00 32.00 27 UER/L..
SER/L 4040 R27U 40.0 40.0 40.0 200.00 40.00 27 UER/L..
• All tools are made for 1.5 helix angle • For multi-tooth inserts use anvils AE16M / AI16M; AE22M / AI22M; AE27M / AI27M
• For GTGA inserts, use anvil AE 16-0
(1) Toolholder without anvil (2) Right-hand inserts (ER) for right-hand tools (SER)

Spare Parts
Designation
SER 0808 H11 SR M2.6-L6.7-S11 T-8/5
SER/L 1010 H11 SR M2.6-L6.7-S11 T-8/5
SEL 1212 F16 SR 5-40-L12.2-S16 SR 5-40-L6.8-A16 AI16 T-10/5
SER 1212 F16 SR 5-40-L12.2-S16 SR 5-40-L6.8-A16 AE16 T-10/5
SER 1212 X16 SR 5-40-L12.2-S16 SR 5-40-L6.8-A16 AE16 T-10/5
SEL 1616 H16 SR 5-40-L12.2-S16 SR 5-40-L6.8-A16 AI16 T-10/5
SER 1616 H16 SR 5-40-L12.2-S16 SR 5-40-L6.8-A16 AE16 T-10/5
SER 1616 K16G SR 5-40-L12.2-S16 SR 5-40-L6.8-A16 AE16 T-10/5
SEL 2020-16-AD SR 5-40-L12.2-S16 SR 5-40-L6.8-A16 AI16 T-10/5
SER 2020-16-AD SR 5-40-L12.2-S16 SR 5-40-L6.8-A16 AE16 T-10/5
SEL 2020 K16 SR 5-40-L12.2-S16 SR 5-40-L6.8-A16 AI16 T-10/5
SER 2020 K16 SR 5-40-L12.2-S16 SR 5-40-L6.8-A16 AE16 T-10/5
SEL 2525 M16 SR 5-40-L12.2-S16 SR 5-40-L6.8-A16 AI16 T-10/5
SER 2525 M16 SR 5-40-L12.2-S16 SR 5-40-L6.8-A16 AE16 T-10/5
SEL 3232 P16 SR 5-40-L12.2-S16 SR 5-40-L6.8-A16 AI16 T-10/5
SER 3232 P16 SR 5-40-L12.2-S16 SR 5-40-L6.8-A16 AE16 T-10/5
SEL 2525 M22 SR 8-32-L15-S22 SR 8-32-L5.8-A22 AI22 T-20/5
SER 2525 M22 SR 8-32-L15-S22 SR 8-32-L5.8-A22 AE22 T-20/5
SEL 3232 P22 SR 8-32-L15-S22 SR 8-32-L5.8-A22 AI22 T-20/5
SER 3232 P22 SR 8-32-L15-S22 SR 8-32-L5.8-A22 AE22 T-20/5
SER 4040 R22 SR 8-32-L15-S22 SR 8-32-L5.8-A22 AE22 T-20/5
SEL 2525 M22U SR 8-32-L15-S22 SR 8-32-L5.8-A22 AI22U T-20/5
SER 2525 M22U SR 8-32-L15-S22 SR 8-32-L5.8-A22 AE22U T-20/5
SEL 3232 P22U SR 8-32-L15-S22 SR 8-32-L5.8-A22 AI22U T-20/5
SER 3232 P22U SR 8-32-L15-S22 SR 8-32-L5.8-A22 AE22U T-20/5
SEL 4040 R22U SR 8-32-L15-S22 SR 8-32-L5.8-A22 AI22U T-20/5
SEL 2525 M27 SR M5-L22-S40 SR M5-L5.8-A27 AI27 T-25/3
SER 2525 M27 SR M5-L22-S40 SR M5-L5.8-A27 AE27 T-25/3
SEL 3232 P27 SR M5-L22-S40 SR M5-L5.8-A27 AI27 T-25/3
SER 3232 P27 SR M5-L22-S40 SR M5-L5.8-A27 AE27 T-25/3
SER 4040 R27 SR M5-L22-S40 SR M5-L5.8-A27 AE27 T-25/3
SEL 2525 M27U SR M5-L22-S40 SR M5-L5.8-A27 AI27U T-25/3
SER 2525 M27U SR M5-L22-S40 SR M5-L5.8-A27 AE27U T-25/3
SEL 3232 P27U SR M5-L22-S40 SR M5-L5.8-A27 AI27U T-25/3
SER 3232 P27U SR M5-L22-S40 SR M5-L5.8-A27 AE27U T-25/3
SEL 4040 R27U SR M5-L22-S40 SR M5-L5.8-A27 AI27U T-25/3
SER 4040 R27U SR M5-L22-S40 SR M5-L5.8-A27 AE27U T-25/3
