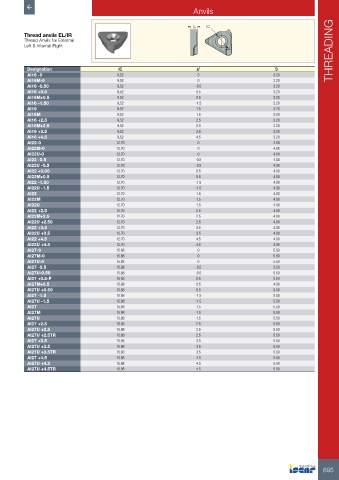

Page 697 - ISCAR(TURNING-CATALOG-42-2022)

Anvils

S I.C
Thread anvils EL/IR
Thread Anvils for External
Left & Internal Right THREADING

Designation IC a° S
AI16 -0 9.52 0 3.20
AI16M-0 9.52 0 3.20
AI16 -0.50 9.52 -0.5 3.20
AI16 +0.5 9.52 0.5 3.20
AI16M+0.5 9.52 0.5 3.20
AI16 -1.50 9.52 -1.5 3.20
AI16 9.52 1.5 3.20
AI16M 9.52 1.5 3.20
AI16 +2.5 9.52 2.5 3.20
AI16M+2.5 9.52 2.5 3.20
AI16 +3.5 9.52 3.5 3.20
AI16 +4.5 9.52 4.5 3.20
AI22-0 12.70 0 4.00
AI22M-0 12.70 0 4.00
AI22U-0 12.70 0 4.00
AI22 -0.5 12.70 -0.5 4.00
AI22U -0.5 12.70 -0.5 4.00
AI22 +0.50 12.70 0.5 4.00
AI22M+0.5 12.70 0.5 4.00
AI22 -1.50 12.70 -1.5 4.00
AI22U -1.5 12.70 -1.5 4.00
AI22 12.70 1.5 4.00
AI22M 12.70 1.5 4.00
AI22U 12.70 1.5 4.00
AI22 +2.5 12.70 2.5 4.00
AI22M+2.5 12.70 2.5 4.00
AI22U +2.50 12.70 2.5 4.00
AI22 +3.5 12.70 3.5 4.00
AI22U +3.5 12.70 3.5 4.00
AI22 +4.5 12.70 4.5 4.00
AI22U +4.5 12.70 4.5 4.00
AI27-0 15.88 0 5.50
AI27M-0 15.88 0 5.50
AI27U-0 15.88 0 5.50
AI27 -0.5 15.88 -0.5 3.20
AI27U-0.50 15.88 -0.5 5.50
AI27 +0.5-P 15.88 0.5 5.50
AI27M+0.5 15.88 0.5 4.00
AI27U +0.50 15.88 0.5 5.50
AI27 -1.5 15.88 -1.5 5.50
AI27U -1.5 15.88 -1.5 5.50
AI27 15.88 1.5 5.50
AI27M 15.88 1.5 5.50
AI27U 15.88 1.5 5.50
AI27 +2.5 15.88 2.5 5.50
AI27U +2.5 15.88 2.5 5.50
AI27U +2.5TR 15.88 2.5 5.50
AI27 +3.5 15.88 3.5 5.50
AI27U +3.5 15.88 3.5 5.50
AI27U +3.5TR 15.88 3.5 5.50
AI27 +4.5 15.88 4.5 5.50
AI27U +4.5 15.88 4.5 5.50
AI27U +4.5TR 15.88 4.5 5.50
