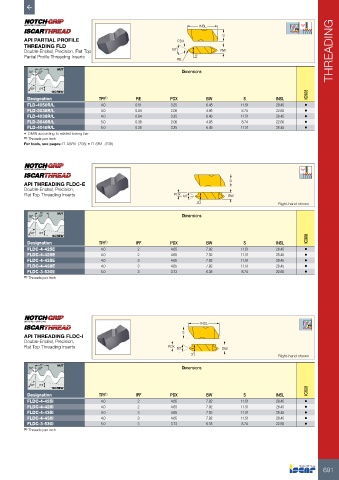

Page 693 - ISCAR(TURNING-CATALOG-42-2022)

INSL
API PARTIAL PROFILE PDX S
THREADING FLD
Double-Ended, Precision, Flat Top 60˚ BW THREADING
Partial Profile Threading Inserts 3˚
RE
TP NUT
30° 30° Dimensions

90° IPF
SCREW IC908
Designation TPI (1) RE PDX BW S INSL
FLD-4050R/L 4.0 0.51 3.25 6.48 11.51 28.45 •
FLD-3038R/L 4.0 0.84 2.08 4.95 8.74 22.60 •
FLD-4038R/L 4.0 0.84 3.25 6.48 11.51 28.45 •
FLD-3040R/L 5.0 0.38 2.08 4.95 8.74 22.60 •
FLD-4040R/L 5.0 0.38 3.25 6.48 11.51 28.45 •
• DMIN according to related boring bar
(1) Threads per inch
For tools, see pages: FLASR/L (708) • FLSR/L (708)

API THREADING FLDC-E S
Double-Ended, Precision,
Flat Top Threading Inserts PDX 60˚ BW
3˚ Right-hand shown
TP NUT
30° 30° Dimensions

90° IPF
SCREW IC908
Designation TPI (1) IPF PDX BW S INSL
FLDC-4-425E 4.0 2 4.65 7.92 11.51 28.45 •
FLDC-4-428E 4.0 2 4.65 7.92 11.51 28.45 •
FLDC-4-435E 4.0 3 4.65 7.92 11.51 28.45 •
FLDC-4-438E 4.0 3 4.65 7.92 11.51 28.45 •
FLDC-3-530E 5.0 3 3.73 6.35 8.74 22.60 •
(1) Threads per inch

INSL
API THREADING FLDC-I S
Double-Ended, Precision,
Flat Top Threading Inserts PDX 60˚ BW
3˚ Right-hand shown

TP NUT
30° 30° Dimensions

90° IPF
SCREW IC908
Designation TPI (1) IPF PDX BW S INSL
FLDC-4-425I 4.0 2 4.65 7.92 11.51 28.45 •
FLDC-4-428I 4.0 2 4.65 7.92 11.51 28.45 •
FLDC-4-435I 4.0 3 4.65 7.92 11.51 28.45 •
FLDC-4-438I 4.0 3 4.65 7.92 11.51 28.45 •
FLDC-3-530I 5.0 3 3.73 6.35 8.74 22.60 •
(1) Threads per inch
