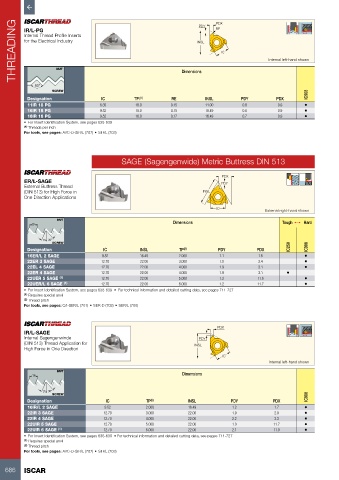

P. 688

THREADING  IR/L-PG                                              lNSL   PDX IC            Internal left-hand shown
                                                                       PDY
                                                                             RE
         Internal Thread Profile Inserts
         for the Electrical Industry








             80°     NUT                                         Dimensions
                   SCREW
           Designation               IC         TPI (1)      RE          INSL         PDY         PDX        IC908
           11IR 18 PG               6.35         18.0        0.15        11.00        0.8          0.9      •
           16IR 18 PG               9.52         18.0        0.15        16.49        0.8          0.9      •
           16IR 16 PG               9.52         16.0        0.17        16.49        0.7          0.9      •
         •  For Insert Identification System, see pages 638-639
         (1)  Threads per inch
         For tools, see pages: AVC-D-SIR/L (707) • SIR/L (703)



                                            SAGE (Sagengenwide) Metric Buttress DIN 513

                                                                               PDX
         ER/L-SAGE                                                             PDY
         External Buttress Thread
         (DIN 513) for High Force in                                    INSL
         One Direction Applications
                                                                             IC               External right-hand shown

                     NUT
            TP                                                Dimensions                            Tough 1   Hard

                3° 30°
                   SCREW
           Designation               IC           INSL          TP (2)        PDY          PDX         IC250  IC908
           16ER/L 2 SAGE             9.52         16.49         2.000         1.1           1.6             •
           22ER 3 SAGE               12.70        22.00         3.000         1.5           2.4             •
           22EL 4 SAGE               12.70        22.00         4.000         1.9           3.1             •
           22ER 4 SAGE               12.70        22.00         4.000         1.9           3.1       •
           22UER 5 SAGE  (1)         12.70        22.00         5.000         1.2          11.6             •
           22UER/L 6 SAGE  (1)       12.70        22.00         6.000         1.2          11.7             •
         •  For Insert Identification System, see pages 638-639  •  For technical information and detailed cutting data, see pages 711-727
         (1)  Requires special anvil
         (2)  Thread pitch
         For tools, see pages: C#-SER/L (701) • SER-D (702) • SER/L (700)


                                                                             PDX
         IR/L-SAGE
         Internal Sagengenwinde                                        PDY
         (DIN 513) Thread Application for                            INSL
         High Force in One Direction
                                                                               IC
                                                                                               Internal left-hand shown
                     NUT
            TP                                                   Dimensions

                3° 30°
                   SCREW                                                                                     IC908
           Designation                IC            TP (2)         INSL           PDY            PDX
           16IR/L 2 SAGE              9.52          2.000          16.49           1.2           1.7        •
           22IR 3 SAGE               12.70          3.000          22.00           1.9           2.9        •
           22IR 4 SAGE               12.70          4.000          22.00           2.2           3.3        •
           22UIR 5 SAGE              12.70          5.000          22.00           1.9           11.7       •
           22UIR 6 SAGE  (1)         12.70          6.000          22.00           2.1           11.9       •
         •  For Insert Identification System, see pages 638-639  • For technical information and detailed cutting data, see pages 711-727
         (1)  Requires special anvil
         (2)  Thread pitch
         For tools, see pages: AVC-D-SIR/L (707) • SIR/L (703)


   686    ISCAR
