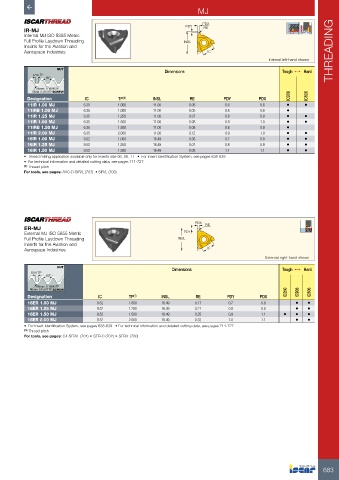

P. 685

MJ

                                                                        PDX
          IR-MJ                                                   PDY    RE
          Internal MJ ISO 5855 Metric
          Full Profile Laydown Threading                          INSL
          Inserts for the Aviation and
          Aerospace Industries                                            IC                                          THREADING
                                                                                               Internal left-hand shown
                     NUT                                   Dimensions
             5/16 TP                                                                                Tough 1   Hard
                 60°
              REmax  0.18042TP
            REmin  0.15011TP SCREW
           Designation         IC          TP (1)      INSL         RE          PDY         PDX        IC908  IC806
           11IR 1.00 MJ       6.35        1.000        11.00       0.05         0.6         0.6       •     •
           11IRB 1.00 MJ      6.35        1.000        11.00       0.05         0.6         0.6       •
           11IR 1.25 MJ       6.35        1.250        11.00       0.07         0.8         0.9       •     •
           11IR 1.50 MJ       6.35        1.500        11.00       0.08         0.8         1.0       •     •
           11IRB 1.50 MJ      6.35        1.500        11.00       0.08         0.8         0.9       •
           11IR 2.00 MJ       6.35        2.000        11.00       0.12         0.9         1.0       •     •
           16IR 1.00 MJ       9.52        1.000        16.49       0.05         0.7         0.8       •     •
           16IR 1.25 MJ       9.52        1.250        16.49       0.07         0.8         0.9       •     •
           16IR 1.50 MJ       9.52        1.500        16.49       0.08         1.1         1.1       •     •
          •  Thread milling application available only for inserts size 06, 08, 11   •  For Insert Identification System, see pages 638-639
          •  For technical information and detailed cutting data, see pages 711-727
          (1)  Thread pitch
          For tools, see pages: AVC-D-SIR/L (707)  • SIR/L (703)







                                                                      PDX
          ER-MJ                                                          RE
          External MJ ISO 5855 Metric                             PDY
          Full Profile Laydown Threading                        INSL
          Inserts for the Aviation and
          Aerospace Industries                                            IC
                                                                                              External right-hand shown
                     NUT
                                                             Dimensions                             Tough 1   Hard
            5/16 TP
                 60°
              REmax  0.18042TP
           REmin  0.15011TP SCREW                                                                     IC250  IC908  IC806
           Designation              IC        TP (1)      INSL        RE         PDY        PDX
           16ER 1.00 MJ            9.52       1.000       16.49       0.17       0.7         0.8         •   •
           16ER 1.25 MJ            9.52       1.250       16.49       0.21       0.8         0.8         •   •
           16ER 1.50 MJ            9.52       1.500       16.49       0.25       0.9         1.1     •   •   •
           16ER 2.00 MJ            9.52       2.000       16.49       0.33       1.0         1.1         •   •
          •  For Insert Identification System, see pages 638-639   • For technical information and detailed cutting data, see pages 711-727
          (1)  Thread pitch
          For tools, see pages: C#-SER/L (701) • SER-D (702) • SER/L (700)
