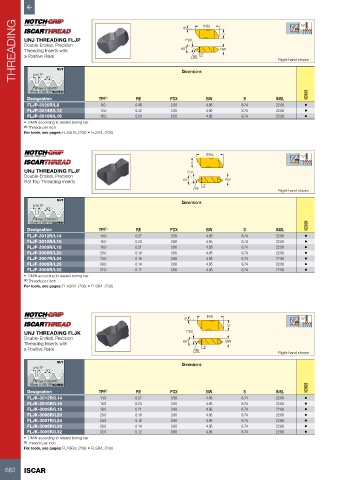

Page 684 - ISCAR(TURNING-CATALOG-42-2022)

THREADING NUT 60˚ 5˚ PDX RE 3˚ INSL BW Right-hand shown

S
UNJ THREADING FLJP
Double-Ended, Precision
Threading Inserts with

a Positive Rake

5/16 TP
60°
REmax 0.18042TP Dimensions
REmin 0.15011TPSCREW IC908
Designation TPI (1) RE PDX BW S INSL
FLJP-3020R/L8 8.0 0.48 2.50 4.95 8.74 22.60 •
FLJP-3014R/L12 12.0 0.32 2.50 4.95 8.74 22.60 •
FLJP-3010R/L16 16.0 0.24 2.50 4.95 8.74 22.60 •
• DMIN according to related boring bar
(1) Threads per inch
For tools, see pages: FLASR/L (708) • FLSR/L (708)

INSL
S

UNJ THREADING FLJF PDX
Double-Ended, Precision
Flat Top Threading Inserts 60˚ BW
3˚
RE Right-hand shown

NUT Dimensions
5/16 TP
60°
REmax 0.18042TP
REmin 0.15011TPSCREW IC908
Designation TPI (1) RE PDX BW S INSL
FLJF-3012R/L14 14.0 0.27 3.58 4.95 8.74 22.60 •
FLJF-3010R/L16 16.0 0.24 3.60 4.95 8.74 22.60 •
FLJF-3009R/L18 18.0 0.21 3.60 4.95 8.74 22.60 •
FLJF-3008R/L20 20.0 0.19 3.60 4.95 8.74 22.60 •
FLJF-3007R/L24 24.0 0.16 3.60 4.95 8.74 22.60 •
FLJF-3006R/L28 28.0 0.14 3.60 4.95 8.74 22.60 •
FLJF-3005R/L32 32.0 0.12 3.60 4.95 8.74 22.60 •
• DMIN according to related boring bar
(1) Threads per inch
For tools, see pages: FLASR/L (708) • FLSR/L (708)

5˚ INSL
S
UNJ THREADING FLJK PDX
Double-Ended, Precision BW
Threading Inserts with 60˚
a Positive Rake RE 3˚
Right-hand shown
NUT Dimensions
5/16 TP
60°
REmax 0.18042TP
REmin 0.15011TPSCREW IC908
Designation TPI (1) RE PDX BW S INSL
FLJK-3012R/L14 14.0 0.27 3.58 4.95 8.74 22.60 •
FLJK-3010R/L16 16.0 0.24 3.60 4.95 8.74 22.60 •
FLJK-3009R/L18 18.0 0.21 3.60 4.95 8.74 22.60 •
FLJK-3008R/L20 20.0 0.19 3.60 4.95 8.74 22.60 •
FLJK-3007R/L24 24.0 0.16 3.60 4.95 8.74 22.60 •
FLJK-3006R/L28 28.0 0.14 3.60 4.95 8.74 22.60 •
FLJK-3005R/L32 32.0 0.12 3.60 4.95 8.74 22.60 •
• DMIN according to related boring bar
(1) Threads per inch
For tools, see pages: FLASR/L (708) • FLSR/L (708)

682 ISCAR
