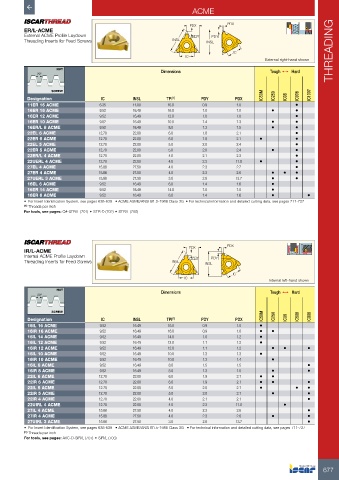

Page 679 - ISCAR(TURNING-CATALOG-42-2022)

ACME

PDX
ER/L-ACME PDX
External ACME Profile Laydown PDY PDY
Threading Inserts for Feed Screws INSL INSL

IC THREADING
IC
External right-hand shown
NUT
29° Dimensions Tough 1 Hard

SCREW
Designation IC INSL TPI (1) PDY PDX IC50M IC250 IC08 IC908 IC1007
11ER 16 ACME 6.35 11.00 16.0 0.9 1.0 •
16ER 16 ACME 9.52 16.49 16.0 1.0 1.0 • •
16ER 12 ACME 9.52 16.49 12.0 1.0 1.0 •
16ER 10 ACME 9.52 16.49 10.0 1.4 1.3 • •
16ER/L 8 ACME 9.52 16.49 8.0 1.3 1.5 • •
22EL 6 ACME 12.70 22.00 6.0 1.8 2.1 •
22ER 6 ACME 12.70 22.00 6.0 1.8 2.1 • •
22EL 5 ACME 12.70 22.00 5.0 2.0 2.4 •
22ER 5 ACME 12.70 22.00 5.0 2.0 2.4 • •
22ER/L 4 ACME 12.70 22.00 4.0 2.1 2.3 •
22UERL 4 ACME 12.70 22.00 4.0 2.3 11.0 • •
27EL 4 ACME 15.88 27.50 4.0 2.3 2.7 •
27ER 4 ACME 15.88 27.50 4.0 2.3 2.6 • • •
27UERL 3 ACME 15.88 27.50 3.0 2.8 13.7 • •
16EL 6 ACME 9.52 16.49 6.0 1.4 1.6 •
16ER 14 ACME 9.52 16.49 14.0 1.0 1.0 •
16ER 6 ACME 9.52 16.49 6.0 1.4 1.6 • •
• For Insert Identification System, see pages 638-639 • ACME ASME/ANSI B1.5-1988 Class 3G • For technical information and detailed cutting data, see pages 711-727
(1) Threads per inch
For tools, see pages: C#-SER/L (701) • SER-D (702) • SER/L (700)

PDX
IR/L-ACME PDX
Internal ACME Profile Laydown PDY PDY
Threading Inserts for Feed Screws INSL INSL

IC
IC
Internal left-hand shown
NUT Dimensions
29° Tough 1 Hard

SCREW
Designation IC INSL TPI (1) PDY PDX IC50M IC250 IC08 IC508 IC908
16IL 16 ACME 9.52 16.49 16.0 0.9 1.0 •
16IR 16 ACME 9.52 16.49 16.0 0.9 1.0 • •
16IL 14 ACME 9.52 16.49 14.0 1.0 1.2 •
16IL 12 ACME 9.52 16.49 12.0 1.1 1.2 •
16IR 12 ACME 9.52 16.49 12.0 1.1 1.2 • • •
16IL 10 ACME 9.52 16.49 10.0 1.3 1.3 •
16IR 10 ACME 9.52 16.49 10.0 1.3 1.4 •
16IL 8 ACME 9.52 16.49 8.0 1.5 1.5 •
16IR 8 ACME 9.52 16.49 8.0 1.3 1.5 • •
22IL 6 ACME 12.70 22.00 6.0 1.9 2.1 • •
22IR 6 ACME 12.70 22.00 6.0 1.9 2.1 • • •
22IL 5 ACME 12.70 22.00 5.0 2.0 2.1 • • •
22IR 5 ACME 12.70 22.00 5.0 2.0 2.1 • •
22IR 4 ACME 12.70 22.00 4.0 2.1 2.1 •
22UIRL 4 ACME 12.70 22.00 4.0 2.3 11.0 •
27IL 4 ACME 15.88 27.50 4.0 2.3 2.6 •
27IR 4 ACME 15.88 27.50 4.0 2.3 2.6 • •
27UIRL 3 ACME 15.88 27.50 3.0 2.8 13.7 •
• For Insert Identification System, see pages 638-639 • ACME ASME/ANSI B1.5-1988 Class 3G • For technical information and detailed cutting data, see pages 711-727
(1) Threads per inch
For tools, see pages: AVC-D-SIR/L (707) • SIR/L (703)

677
