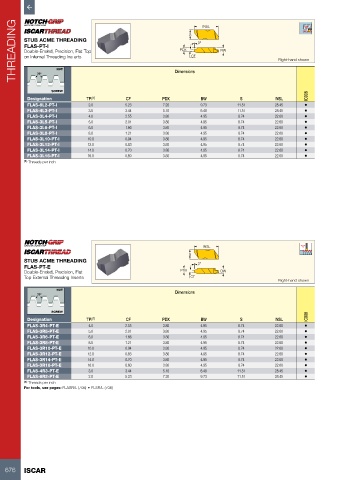

Page 678 - ISCAR(TURNING-CATALOG-42-2022)

THREADING STUB ACME THREADING Dimensions 3° INSL BW Right-hand shown

S
FLAS-PT-I
PDX
Double-Ended, Precision, Flat Top
CF
on Internal Threading Ins erts
NUT
29°

SCREW
Designation TPI (1) CF PDX BW S INSL IC908
FLAS-6L2-PT-I 2.0 5.23 7.20 9.73 11.51 28.45 •
FLAS-4L3-PT-I 3.0 3.44 5.10 6.48 11.51 28.45 •
FLAS-3L4-PT-I 4.0 2.55 3.80 4.95 8.74 22.60 •
FLAS-3L5-PT-I 5.0 2.01 3.80 4.95 8.74 22.60 •
FLAS-3L6-PT-I 6.0 1.66 3.80 4.95 8.74 22.60 •
FLAS-3L8-PT-I 8.0 1.21 3.80 4.95 8.74 22.60 •
FLAS-3L10-PT-I 10.0 0.94 3.80 4.95 8.74 22.60 •
FLAS-3L12-PT-I 12.0 0.83 3.80 4.95 8.74 22.60 •
FLAS-3L14-PT-I 14.0 0.70 3.80 4.95 8.74 22.60 •
FLAS-3L16-PT-I 16.0 0.60 3.80 4.95 8.74 22.60 •
(1) Threads per inch

INSL
S
STUB ACME THREADING 3°
FLAS-PT-E
Double-Ended, Precision, Flat PDX BW
Top External Threading Inserts CF
Right-hand shown
NUT
29° Dimensions

SCREW
Designation TPI (1) CF PDX BW S INSL IC908
FLAS-3R4-PT-E 4.0 2.55 3.80 4.95 8.74 22.60 •
FLAS-3R5-PT-E 5.0 2.01 3.80 4.95 8.74 22.60 •
FLAS-3R6-PT-E 6.0 1.66 3.80 4.95 8.74 22.60 •
FLAS-3R8-PT-E 8.0 1.21 3.80 4.95 8.74 22.60 •
FLAS-3R10-PT-E 10.0 0.94 3.80 4.95 8.74 22.60 •
FLAS-3R12-PT-E 12.0 0.83 3.80 4.95 8.74 22.60 •
FLAS-3R14-PT-E 14.0 0.70 3.80 4.95 8.74 22.60 •
FLAS-3R16-PT-E 16.0 0.60 3.80 4.95 8.74 22.60 •
FLAS-4R3-PT-E 3.0 3.44 5.10 6.48 11.51 28.45 •
FLAS-6R2-PT-E 2.0 5.23 7.20 9.73 11.51 28.45 •
(1) Threads per inch
For tools, see pages: FLASR/L (708) • FLSR/L (708)
