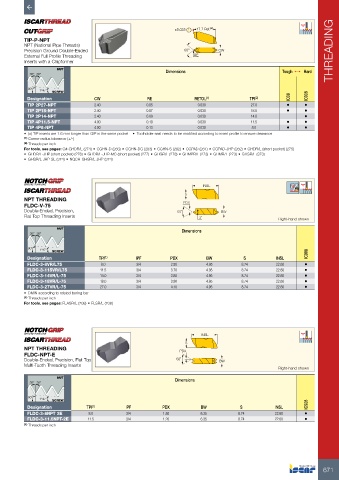

Page 673 - ISCAR(TURNING-CATALOG-42-2022)
P. 673

±0.025  17.7 Ref. (a)
             TIP-P-NPT
          NPT (National Pipe Threads)
          Precision Ground Double-Ended                           60°         CW                                      THREADING
          External Full Profile Threading                            RE
          Inserts with a Chipformer
                     NUT                                   Dimensions
           30°  30°                                                                                 Tough 1   Hard

           90°  1°47'
                   SCREW
           Designation            CW                 RE              RETOL (1)           TPI (2)       IC08  IC908
           TIP 2P27-NPT           2.40              0.05              0.030              27.0         •     •
           TIP 2P18-NPT           2.40              0.07              0.030              18.0         •     •
           TIP 2P14-NPT           2.40              0.09              0.030              14.0               •
           TIP 4P11.5-NPT         4.00              0.10              0.030              11.5         •     •
           TIP 4P8-NPT            4.00              0.13              0.030              8.0          •     •
          •  (a) TIP inserts are 1.6 mm longer than GIP in the same pocket    •  Toolholder seat needs to be modified according to insert profile to ensure clearance
          (1)  Corner radius tolerance (+/-)
          (2)  Threads per inch
          For tools, see pages: C#-GHDR/L (274) • CGHN-D (283) • CGHN-DG (283) • CGHN-S (282) • CGPAD (281) • CGPAD-JHP (282) • GHDR/L (short pocket) (275)
          •  GHDR/L-JHP (short pocket) (276) • GHDR/L-JHP-MC (short pocket) (277) • GHGR/L (278) • GHMPR/L (273) • GHMR/L (273) • GHSR/L (373)
          •  GHSR/L-JHP-SL (374) • NQCH-GHSR/L-JHP (374)




                                                                  S     INSL
          NPT THREADING
          FLDC-V-75                                              PDX
          Double-Ended, Precision,                             60˚             BW
          Flat Top Threading Inserts                                   3˚                          Right-hand shown

                     NUT
           30°  30°                                              Dimensions

           90°
               1°47'  SCREW
           Designation              TPI (1)      IPF         PDX         BW            S          INSL       IC908
           FLDC-3-8VR/L75           8.0          3/4         2.50        4.95         8.74        22.60     •
           FLDC-3-115VR/L75         11.5         3/4         3.70        4.95         8.74        22.60     •
           FLDC-3-14VR/L-75         14.0         3/4         3.80        4.95         8.74        22.60     •
           FLDC-3-18VR/L-75         18.0         3/4         3.90        4.95         8.74        22.60     •
           FLDC-3-27VR/L-75         27.0         3/4         4.10        4.95         8.74        22.60     •
          •  DMIN according to related boring bar
          (1)  Threads per inch
          For tools, see pages: FLASR/L (708) • FLSR/L (708)



                                                                  S     INSL

          NPT THREADING                                         PDX
          FLDC-NPT-E
          Double-Ended, Precision, Flat Top                    60˚            BW
          Multi-Tooth Threading Inserts
                                                                                                   Right-hand shown
                     NUT                                      Dimensions
           30°  30°

           90°  1°47'
                   SCREW
           Designation         TPI (1)       IPF          PDX           BW           S            INSL       IC908
           FLDC-3-8NPT 2E       8.0          3/4          1.50         6.35          8.74         22.60     •
           FLDC-3-11.5NPT-2E    11.5         3/4          1.20         6.35          8.74         22.60     •
          (1)  Threads per inch
