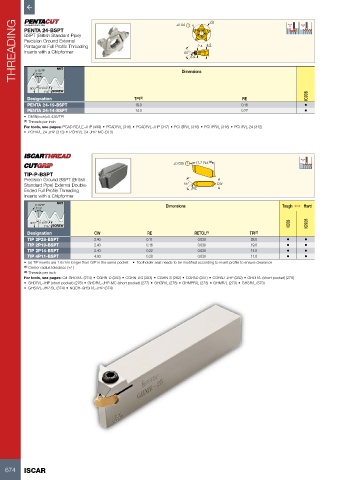

Page 676 - ISCAR(TURNING-CATALOG-42-2022)
P. 676

THREADING  PENTA 24-BSPT                                 ±0.04 55°  RE  2.4  4.5 24

         BSPT (British Standard Pipe)
         Precision Ground External
         Pentagonal Full Profile Threading
         Inserts with a Chipformer


                     NUT
              27.5°

               0.137TP
            90°  0.137TP                                         Dimensions
                1°47' SCREW
           Designation                          TPI (1)                               RE                     IC908
           PENTA 24-19-BSPT                      19.0                                 0.16                  •
           PENTA 24-14-BSPT                      14.0                                 0.22                  •
         •  DMIN(inch)=5.435/TPI
         (1)  Threads per inch
         For tools, see pages: PCAD RE/LE-JHP (499) • PCADR/L (316) • PCADR/L-JHP (317) • PCHBR/L (318) • PCHPR/L (316) • PCHR/L-24 (312)
         •  PCHR/L-24-JHP (313) • PCHR/L-24-JHP-MC (313)



                                                              ±0.025  17.7 Ref. (a)

          TIP-P-BSPT
          Precision Ground BSPT (British
          Standard Pipe) External Double-                         55°        CW
          Ended Full Profile Threading                               RE
          Inserts with a Chipformer
                     NUT
             0.137TP                                       Dimensions                               Tough 1   Hard
              27.5°
            90°  0.137TP                                                                               IC08  IC908
                1°47' SCREW
           Designation            CW                 RE              RETOL (1)           TPI (2)
           TIP 2P28-BSPT          2.40              0.11              0.030              28.0         •     •
           TIP 2P19-BSPT          2.40              0.16              0.030              19.0         •     •
           TIP 2P14-BSPT          2.40              0.22              0.030              14.0         •     •
           TIP 4P11-BSPT          4.00              0.28              0.030              11.0         •     •
          •  (a) TIP inserts are 1.6 mm longer than GIP in the same pocket    •  Toolholder seat needs to be modified according to insert profile to ensure clearance
          (1)  Corner radius tolerance (+/-)
          (2)  Threads per inch
          For tools, see pages: C#-GHDR/L (274) • CGHN-D (283) • CGHN-DG (283) • CGHN-S (282) • CGPAD (281) • CGPAD-JHP (282) • GHDR/L (short pocket) (275)
          •  GHDR/L-JHP (short pocket) (276) • GHDR/L-JHP-MC (short pocket) (277) • GHGR/L (278) • GHMPR/L (273) • GHMR/L (273) • GHSR/L (373)
          •  GHSR/L-JHP-SL (374) • NQCH-GHSR/L-JHP (374)




































   674    ISCAR
