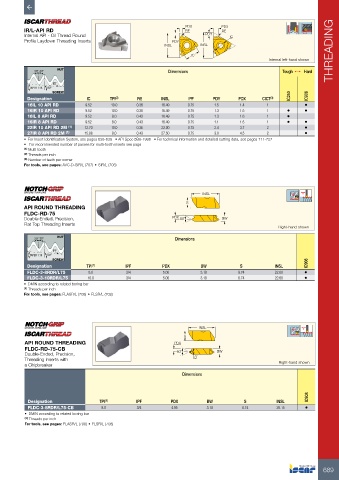

Page 691 - ISCAR(TURNING-CATALOG-42-2022)

IR/L-API RD PDX PDX
RE
RE
Internal API - Oil Thread Round PDY IC
Profile Laydown Threading Inserts PDY
lNSL lNSL
IC THREADING
Internal left-hand shown
30° 30° NUT Dimensions Tough 1 Hard

IPF
TAPER 1:16 90°
SCREW
Designation IC TPI (2) RE INSL IPF PDY PDX CICT (3) IC250 IC908
16IL 10 API RD 9.52 10.0 0.36 16.49 0.75 1.5 1.4 1 •
16IR 10 API RD 9.52 10.0 0.36 16.49 0.75 1.3 1.5 1 • •
16IL 8 API RD 9.52 8.0 0.43 16.49 0.75 1.3 1.6 1 •
16IR 8 API RD 9.52 8.0 0.43 16.49 0.75 1.1 1.5 1 • •
22IR 10 API RD 2M (1) 12.70 10.0 0.36 22.00 0.75 2.4 3.7 2 •
27IR 8 API RD 2M (1) 15.88 8.0 0.43 27.50 0.75 3.0 4.5 2 •
• For Insert Identification System, see pages 638-639 • API Spec 5B8-1996 • For technical information and detailed cutting data, see pages 711-727
• For recommended number of passes for multi-tooth inserts see page
(1) Multi-tooth
(2) Threads per inch
(3) Number of teeth per corner
For tools, see pages: AVC-D-SIR/L (707) • SIR/L (703)

S INSL

API ROUND THREADING
FLDC-RD-75
Double-Ended, Precision, PDX 60˚ BW
Flat Top Threading Inserts
Right-hand shown

NUT
30° 30° Dimensions
IPF
TAPER 1:16 90°
SCREW
Designation TPI (1) IPF PDX BW S INSL IC908
FLDC-3-8RDR/L75 8.0 3/4 5.00 3.18 8.74 22.60 •
FLDC-3-10RDR/L75 10.0 3/4 5.00 3.18 8.74 22.60 •
• DMIN according to related boring bar
(1) Threads per inch
For tools, see pages: FLASR/L (708) • FLSR/L (708)

INSL
S
API ROUND THREADING PDX
FLDC-RD-75-CB BW
Double-Ended, Precision, 60˚
Threading Inserts with 3˚
a Chipbreaker Right-hand shown
Dimensions

IC908
Designation TPI (1) IPF PDX BW S INSL
FLDC-3-8RDR/L75-CB 8.0 3/4 4.95 3.18 8.74 25.15 •
• DMIN according to related boring bar
(1) Threads per inch
For tools, see pages: FLASR/L (708) • FLSR/L (708)

689
