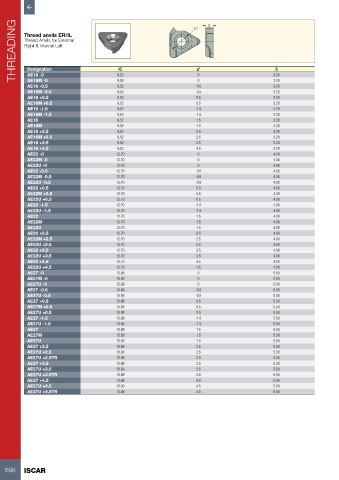

THREADING Thread anvils ER/IL I.C S

Thread Anvils for External
Right & Internal Left

Designation
a°
S
IC
0
AE16 -0
AE16M -0
3.20
0
9.52
AE16 -0.5 9.52 -0.5 3.20
3.20
9.52
AE16M -0.5 9.52 -0.5 3.20
AE16 +0.5 9.52 0.5 3.20
AE16M +0.5 9.52 0.5 3.20
AE16 -1.5 9.52 -1.5 3.20
AE16M -1.5 9.52 -1.5 3.20
AE16 9.52 1.5 3.20
AE16M 9.52 1.5 3.20
AE16 +2.5 9.52 2.5 3.20
AE16M +2.5 9.52 2.5 3.20
AE16 +3.5 9.52 3.5 3.20
AE16 +4.5 9.52 4.5 3.20
AE22 -0 12.70 0 4.00
AE22M -0 12.70 0 4.00
AE22U -0 12.70 0 4.00
AE22 -0.5 12.70 -0.5 4.00
AE22M -0.5 12.70 -0.5 4.00
AE22U -0.5 12.70 -0.5 4.00
AE22 +0.5 12.70 0.5 4.00
AE22M +0.5 12.70 0.5 4.00
AE22U +0.5 12.70 0.5 4.00
AE22 -1.5 12.70 -1.5 4.00
AE22U -1.5 12.70 -1.5 4.00
AE22 12.70 1.5 4.00
AE22M 12.70 1.5 4.00
AE22U 12.70 1.5 4.00
AE22 +2.5 12.70 2.5 4.00
AE22M +2.5 12.70 2.5 4.00
AE22U +2.5 12.70 2.5 4.00
AE22 +3.5 12.70 3.5 4.00
AE22U +3.5 12.70 3.5 4.00
AE22 +4.5 12.70 4.5 4.00
AE22U +4.5 12.70 4.5 4.00
AE27 -0 15.88 0 5.50
AE27M -0 15.88 0 5.50
AE27U -0 15.88 0 5.50
AE27 -0.5 15.88 -0.5 5.50
AE27U -0.5 15.88 -0.5 5.50
AE27 +0.5 15.88 0.5 5.50
AE27M +0.5 15.88 0.5 5.50
AE27U +0.5 15.88 0.5 5.50
AE27 -1.5 15.88 -1.5 5.50
AE27U -1.5 15.88 -1.5 5.50
AE27 15.88 1.5 5.50
AE27M 15.88 1.5 5.50
AE27U 15.88 1.5 5.50
AE27 +2.5 15.88 2.5 5.50
AE27U +2.5 15.88 2.5 5.50
AE27U +2.5TR 15.88 2.5 5.50
AE27 +3.5 15.88 3.5 5.50
AE27U +3.5 15.88 3.5 5.50
AE27U +3.5TR 15.88 3.5 5.50
AE27 +4.5 15.88 4.5 5.50
AE27U +4.5 15.88 4.5 5.50
AE27U +4.5TR 15.88 4.5 5.50
