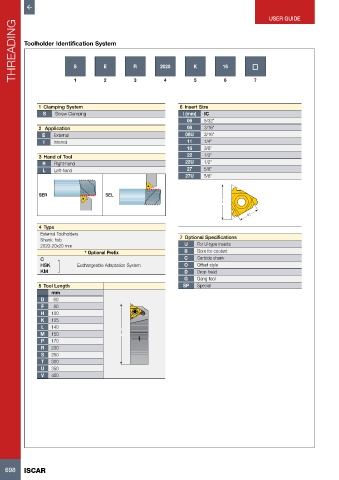

USER GUIDE
      THREADING  Toolholder Identification System  R     2020        K         16         n








                                     E
                           S
                           1
                                                                     5



               1  Clamping System     2         3          4    6  Insert Size  6         7
                S   Screw Clamping                               l (mm)  IC
                                                                   06    5/32"
               2   Application                                     08    3/16"
                E   External                                      08U    3/16"
                I   Internal                                       11    1/4"
                                                                   16    3/8"
               3  Hand of Tool                                     22    1/2"
                R   Right-hand                                    22U    1/2"
                L   Left-hand                                      27    5/8"
                                                                  27U    5/8"


               SER                    SEL
                                                                               l

                                                                                        IC
               4  Type
               External Toolholders
               Shank: hxb                                       7  Optional Specifications
               2020-20x20 mm                                      U   For U-type inserts
                               * Optional Prefix                  B   Bore for coolant
               C                                                  C   Carbide shank
               HSK   ]      Exchangeable Adaptation System        O   Offset style
               KM                                                 D   Drop head
                                                                  G   Gang tool
               5  Tool Length                                    SP   Special
                   mm
               D     60
                F    80
               H   100
               K   125
                L  140
               M   150                     l
               P   170
               R   200
               S   250
                T  300
               U   350
               V   400
