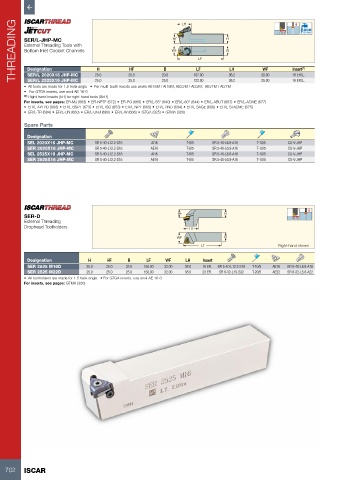

Page 704 - ISCAR(TURNING-CATALOG-42-2022)

THREADING SER/L-JHP-MC H HF B WF LH LF LF H B LH WF Insert (1) Bar Max

HF
External Threading Tools with
Bottom Inlet Coolant Channels

Designation
36.2
107.00
20.0
20.0
SER/L 2020X16 JHP-MC
20.0
SER/L 2525X16 JHP-MC
25.0
25.00
25.0
16 ER/L..
25.0
122.00
36.2
• All tools are made for 1.5 helix angle • For multi-tooth inserts use anvils AE16M / AI16M; AE22M / AI22M; AE27M / AI27M 20.00 16 ER/L..
• For GTGA inserts, use anvil AE 16-0
(1) Right-hand inserts (ER) for right-hand tools (SER)
For inserts, see pages: ER-MJ (683) • ER-NPTF (672) • ER-PG (685) • ER/L-55° (640) • ER/L-60° (644) • ER/L-ABUT (687) • ER/L-ACME (677)
• ER/L-API RD (688) • ER/L-BSPT (673) • ER/L-ISO (653) • ER/L-NPT (669) • ER/L-RND (694) • ER/L-SAGE (686) • ER/L-STACME (675)
• ER/L-TR (684) • ER/L-UN (660) • ER/L-UNJ (680) • ER/L-W (666) • GTGA (325) • GTMA (326)

Spare Parts
Designation
SEL 2020X16 JHP-MC SR 5-40-L12.2-S16 AI16 T-8/5 SR 5-40-L6.8-A16 T-10/5 CU-V-JHP
SER 2020X16 JHP-MC SR 5-40-L12.2-S16 AE16 T-8/5 SR 5-40-L6.8-A16 T-10/5 CU-V-JHP
SEL 2525X16 JHP-MC SR 5-40-L12.2-S16 AI16 T-8/5 SR 5-40-L6.8-A16 T-10/5 CU-V-JHP
SER 2525X16 JHP-MC SR 5-40-L12.2-S16 AE16 T-8/5 SR 5-40-L6.8-A16 T-10/5 CU-V-JHP

SER-D HF H
External Threading
Drophead Toolholders LH

WF B
LF Right-hand shown

Designation H HF B LF WF LH Insert
SER 2525 M16D 25.0 25.0 25.0 150.00 32.00 38.0 16 ER.. SR 5-40-L12.2-S16 T-10/5 AE16 SR 5-40-L6.8-A16
SER 2525 M22D 25.0 25.0 25.0 150.00 32.00 38.0 22 ER.. SR 8-32-L15-S22 T-20/5 AE22 SR 8-32-L5.8-A22
• All toolholders are made for 1.5 helix angle. • For GTGA inserts, use anvil AE 16-0
For inserts, see pages: GTMA (326)

702 ISCAR
