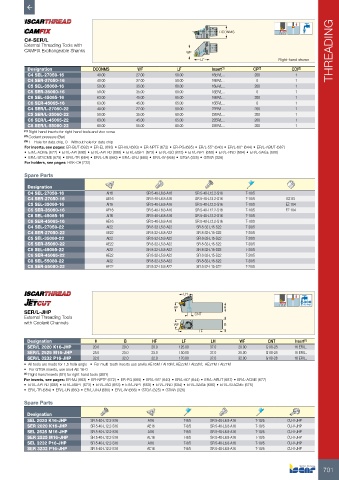

Page 703 - ISCAR(TURNING-CATALOG-42-2022)
P. 703
DCONMS
C#-SER/L
External Threading Tools with
CAMFIX Exchangeable Shanks WF THREADING
LF Right-hand shown
Designation DCONMS WF LF Insert (1) CP (2) CDI (3)
C4 SEL-27050-16 40.00 27.00 50.00 16ER/L... 200 1
C4 SER-27050-16 40.00 27.00 50.00 16ER/L... 0 1
C5 SEL-35060-16 50.00 35.00 60.00 16ER/L... 200 1
C5 SER-35060-16 50.00 35.00 60.00 16ER/L... 0 1
C6 SEL-45065-16 63.00 45.00 65.00 16ER/L... 200 1
C6 SER-45065-16 63.00 45.00 65.00 16ER/L... 0 1
C4 SER/L-27050-22 40.00 27.00 50.00 22ER/L... 200 1
C5 SER/L-35060-22 50.00 35.00 60.00 22ER/L... 200 1
C6 SER/L-45065-22 63.00 45.00 65.00 22ER/L... 200 1
C8 SER/L-55080-22 80.00 55.00 80.00 22ER/L... 200 1
(1) Right-hand inserts for right-hand tools and vice versa
(2) Coolant pressure (Bar)
(3) 1 - Hole for data chip, 0 - Without hole for data chip
For inserts, see pages: ER-BUT (692) • ER-EL (693) • ER-MJ (683) • ER-NPTF (672) • ER-PG (685) • ER/L-55° (640) • ER/L-60° (644) • ER/L-ABUT (687)
• ER/L-ACME (677) • ER/L-API (690) • ER/L-API RD (688) • ER/L-BSPT (673) • ER/L-ISO (653) • ER/L-NPT (669) • ER/L-RND (694) • ER/L-SAGE (686)
• ER/L-STACME (675) • ER/L-TR (684) • ER/L-UN (660) • ER/L-UNJ (680) • ER/L-W (666) • GTGA (325) • GTMA (326)
For holders, see pages: HSK-C# (735)
Spare Parts
Designation
C4 SEL-27050-16 AI16 SR 5-40-L6.8-A16 SR 5-40-L12.2-S16 T-10/5
C4 SER-27050-16 AE16 SR 5-40-L6.8-A16 SR 5-40-L12.2-S16 T-10/5 EZ 83
C5 SEL-35060-16 AI16 SR 5-40-L6.8-A16 SR 5-40-L12.2-S16 T-10/5 EZ 104
C5 SER-35060-16 AE16 SR 5-40-L6.8-A16 SR 5-40-L12.2-S16 T-10/5 EZ 104
C6 SEL-45065-16 AI16 SR 5-40-L6.8-A16 SR 5-40-L12.2-S16 T-10/5
C6 SER-45065-16 AE16 SR 5-40-L6.8-A16 SR 5-40-L12.2-S16 T-10/5
C4 SEL-27050-22 AI22 SR 8-32-L5.8-A22 SR 8-32-L15-S22 T-20/5
C4 SER-27050-22 AE22 SR 8-32-L5.8-A22 SR 8-32-L15-S22 T-20/5
C5 SEL-35060-22 AI22 SR 8-32-L5.8-A22 SR 8-32-L15-S22 T-20/5
C5 SER-35060-22 AE22 SR 8-32-L5.8-A22 SR 8-32-L15-S22 T-20/5
C6 SEL-45065-22 AI22 SR 8-32-L5.8-A22 SR 8-32-L15-S22 T-20/5
C6 SER-45065-22 AE22 SR 8-32-L5.8-A22 SR 8-32-L15-S22 T-20/5
C8 SEL-55080-22 AI22 SR 8-32-L5.8-A22 SR 8-32-L15-S22 T-20/5
C8 SER-55080-22 AE22 SR 8-32-L5.8-A22 SR 8-32-L15-S22 T-20/5
LH
HF H Bar Max
SER/L-JHP CNT
External Threading Tools
with Coolant Channels WF B
LF
Designation H B HF LF LH WF CNT Insert (1)
SER/L 2020 K16-JHP 20.0 20.0 20.0 125.00 37.0 20.00 G1/8-28 16 ER/L..
SER/L 2525 M16-JHP 25.0 25.0 25.0 150.00 37.0 25.00 G1/8-28 16 ER/L..
SER/L 3232 P16-JHP 32.0 32.0 32.0 170.00 37.0 32.00 G1/8-28 16 ER/L..
• All tools are made for 1.5 helix angle • For multi-tooth inserts use anvils AE16M / AI16M; AE22M / AI22M; AE27M / AI27M
• For GTGA inserts, use anvil AE 16-0
(1) Right-hand inserts (ER) for right-hand tools (SER)
For inserts, see pages: ER-MJ (683) • ER-NPTF (672) • ER-PG (685) • ER/L-55° (640) • ER/L-60° (644) • ER/L-ABUT (687) • ER/L-ACME (677)
• ER/L-API RD (688) • ER/L-BSPT (673) • ER/L-ISO (653) • ER/L-NPT (669) • ER/L-RND (694) • ER/L-SAGE (686) • ER/L-STACME (675)
• ER/L-TR (684) • ER/L-UN (660) • ER/L-UNJ (680) • ER/L-W (666) • GTGA (325) • GTMA (326)
Spare Parts
Designation
SEL 2020 K16-JHP SR 5-40-L12.2-S16 AI16 T-8/5 SR 5-40-L6.8-A16 T-10/5 CU-V-JHP
SER 2020 K16-JHP SR 5-40-L12.2-S16 AE16 T-8/5 SR 5-40-L6.8-A16 T-10/5 CU-V-JHP
SEL 2525 M16-JHP SR 5-40-L12.2-S16 AI16 T-8/5 SR 5-40-L6.8-A16 T-10/5 CU-V-JHP
SER 2525 M16-JHP SR 5-40-L12.2-S16 AE16 T-8/5 SR 5-40-L6.8-A16 T-10/5 CU-V-JHP
SEL 3232 P16-JHP SR 5-40-L12.2-S16 AI16 T-8/5 SR 5-40-L6.8-A16 T-10/5 CU-V-JHP
SER 3232 P16-JHP SR 5-40-L12.2-S16 AE16 T-8/5 SR 5-40-L6.8-A16 T-10/5 CU-V-JHP
701
