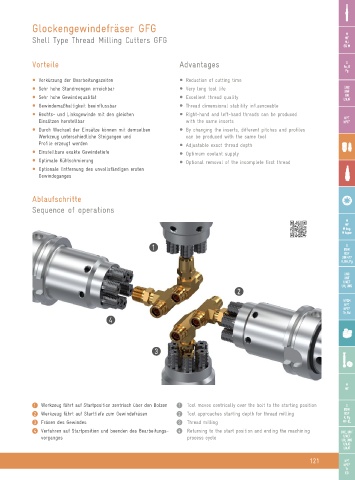

            Glockengewindefräser GFG
                                                                                                                          M
            Shell Type Thread Milling Cutters GFG                                                                         MF
                                                                                                                          MJ
                                                                                                                          EG M

            Vorteile                                            Advantages                                                Rc, R
                                                                                                                           G
                                                                                                                          Pg
                M Verkürzung der Bearbeitungszeiten             M  Reduction of cutting time
                M Sehr hohe Standmengen erreichbar              M  Very long tool life                                    UNC
                                                                                                                          UNF
                                                                                                                          UN
                M Sehr hohe Gewindequalität                     M  Excellent thread quality                               UNJF
                M Gewindemaßhaltigkeit beeinflussbar            M  Thread dimensional stability influenceable
                M  Rechts- und Linksgewinde mit den gleichen    M  Right-hand and left-hand threads can be produced

                                                                                                                          NPT
               Einsätzen herstellbar                              with the same inserts                                   NPTF
                M  Durch Wechsel der Einsätze können mit demselben    M  By changing the inserts, different pitches and profiles

               Werkzeug unterschiedliche Steigungen und           can be produced with the same tool
               Profile erzeugt werden                           M  Adjustable exact thread depth
                M Einstellbare exakte Gewindetiefe              M  Optimum coolant supply
                M Optimale Kühlschmierung                       M  Optional removal of the incomplete first thread
                M  Optionale Entfernung des unvollständigen ersten
               Gewindeganges



            Ablaufschritte
            Sequence of operations

                                                                                                                          M
                                                                                                                          MF
                                                                                                                         M keg.
                                                                                                                         M taper
                                                      1                                                                   BSW
                                                                                                                           G
                                                                                                                          BSF
                                                                                                                         DIN 477
                                                                                                                         R, BA, Pg

                                                                                                                          UNC
                                                                                                                          UNF
                                                                                                                          UNEF
                                                                                                                         UN, UNS
                                                                                    2
                                                                                                                          NPSM
                                                                                                                          NPT
                                                                                                                          NPTF
                                                                                                                          Tr, Rd
                                       4





                                                       3






                                                                                                                          M
                                                                                                                          MF

             1  Werkzeug fährt auf Startposition zentrisch über den Bolzen  1  Tool moves centrically over the bolt to the starting position  G
                                                                                                                          BSW
             2  Werkzeug fährt auf Starttiefe zum Gewindefräsen  2  Tool approaches starting depth for thread milling     BSF
                                                                                                                          R, Pg
             3  Fräsen des Gewindes                             3  Thread milling                                        MF-EL
             4  Verfahren auf Startposition und beenden des Bearbeitungs-  4  Returning to the start position and ending the machining   UNC, UNF
                                                                                                                          UNEF
               vorganges                                           process cycle                                         UN, UNS
                                                                                                                          UNJC
                                                                                                                          UNJF
