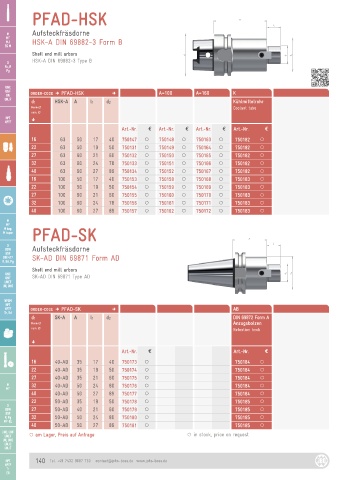

PFAD-HSK A l 1

M Aufsteckfräsdorne
MF
MJ HSK-A DIN 69882-3 Form B
EG M
Shell end mill arbors d d 1 d 2
HSK-A DIN 69882-3 Type B
G
Rc, R
Pg

UNC
UNF ORDER-CODE D PFAD-HSK A=100 A=160 K
UN D
UNJF
d1 HSK-A A l1 d2 Kühlmittelrohr
Nenn-Ø Coolant tube
nom. Ø
NPT
NPTF G
Art.-Nr. a Art.-Nr. a Art.-Nr. a Art.-Nr. a
16 63 50 17 40 750147 ○ 750148 ○ 750163 ○ 750182 ○
22 63 50 19 50 750131 ○ 750149 ○ 750164 ○ 750182 ○
27 63 60 21 60 750132 ○ 750150 ○ 750165 ○ 750182 ○
32 63 60 24 78 750133 ○ 750151 ○ 750166 ○ 750182 ○
40 63 60 27 89 750134 ○ 750152 ○ 750167 ○ 750182 ○
16 100 50 17 40 750153 ○ 750158 ○ 750168 ○ 750183 ○
22 100 50 19 50 750154 ○ 750159 ○ 750169 ○ 750183 ○
27 100 60 21 60 750155 ○ 750160 ○ 750170 ○ 750183 ○
32 100 60 24 78 750156 ○ 750161 ○ 750171 ○ 750183 ○
40 100 60 27 89 750157 ○ 750162 ○ 750172 ○ 750183 ○
M
MF
M keg.
M taper PFAD-SK A
G l 1
BSW Aufsteckfräsdorne
BSF
DIN 477 SK-AD DIN 69871 Form AD
R, BA, Pg
Shell end mill arbors
UNC d 1 d 2
UNF SK-AD DIN 69871 Type AD
UNEF
UN, UNS
NPSM
NPT
NPTF ORDER-CODE D PFAD-SK D AB
Tr, Rd
d1 SK-A A l1 d2 DIN 69872 Form A
Nenn-Ø Anzugsbolzen
nom. Ø Retention knob
G
Art.-Nr. a Art.-Nr. a

16 40-AD 35 17 40 750173 ○ 750184 ○
22 40-AD 35 19 50 750174 ○ 750184 ○
27 40-AD 35 21 60 750175 ○ 750184 ○
M 32 40-AD 50 24 80 750176 ○ 750184 ○
MF
40 40-AD 50 27 89 750177 ○ 750184 ○
22 50-AD 35 19 50 750178 ○ 750185 ○
G
BSW 27 50-AD 40 21 60 750179 ○ 750185 ○
BSF
R, Pg 32 50-AD 50 24 80 750180 ○ 750185 ○
MF-EL
40 50-AD 50 27 89 750181 ○ 750185 ○
UNC, UNF ○ in stock, price on request
UNEF ○ am Lager, Preis auf Anfrage
UN, UNS
UNJC
UNJF
NPT 140 Tel. +49 7432 9087 750 contact@johs-boss.de www.johs-boss.de
