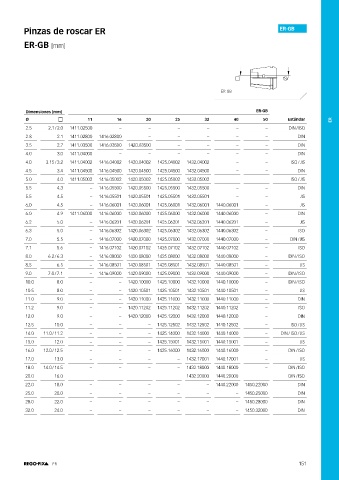

Pinzas de roscar ER ER-GB

ER-GB [mm]

q O

ER-GB
144010000 ER40GB
ER-GB
Dimensiones [mm] Schraffurfaktor 0.5
Ø  11 16 20 25 32 40 50 Estándar ER
Skizzenfaktor 0.35
2.5 2.1 / 2.0 1411.02500 – – – – – – DIN / ISO
Schriftfaktor 0.7
2.8 2.1 1411.02800 1416.02800 – – – – – DIN
3.5 2.7 1411.03500 1416.03500 1420.03500 – – – – DIN
4.0 3.0 1411.04000 – – – – – – DIN
4.0 3.15 / 3.2 1411.04002 1416.04002 1420.04002 1425.04002 1432.04002 – – ISO / JIS
4.5 3.4 1411.04500 1416.04500 1420.04500 1425.04500 1432.04500 – – DIN
5.0 4.0 1411.05002 1416.05002 1420.05002 1425.05002 1432.05002 – – ISO / JIS
5.5 4.3 – 1416.05500 1420.05500 1425.05500 1432.05500 – – DIN
5.5 4.5 – 1416.05501 1420.05501 1425.05501 1432.05501 – – JIS
6.0 4.5 – 1416.06001 1420.06001 1425.06001 1432.06001 1440.06001 – JIS
6.0 4.9 1411.06000 1416.06000 1420.06000 1425.06000 1432.06000 1440.06000 – DIN
6.2 5.0 – 1416.06201 1420.06201 1425.06201 1432.06201 1440.06201 – JIS
6.3 5.0 – 1416.06302 1420.06302 1425.06302 1432.06302 1440.06302 – ISO
7.0 5.5 – 1416.07000 1420.07000 1425.07000 1432.07000 1440.07000 – DIN / JIS
7.1 5.6 – 1416.07102 1420.07102 1425.07102 1432.07102 1440.07102 – ISO
8.0 6.2 / 6.3 – 1416.08000 1420.08000 1425.08000 1432.08000 1440.08000 – DIN / ISO
8.5 6.5 – 1416.08501 1420.08501 1425.08501 1432.08501 1440.08501 – JIS
9.0 7.0 / 7.1 – 1416.09000 1420.09000 1425.09000 1432.09000 1440.09000 – DIN / ISO
10.0 8.0 – – 1420.10000 1425.10000 1432.10000 1440.10000 – DIN / ISO
10.5 8.0 – – 1420.10501 1425.10501 1432.10501 1440.10501 – JIS
11.0 9.0 – – 1420.11000 1425.11000 1432.11000 1440.11000 – DIN
11.2 9.0 – – 1420.11202 1425.11202 1432.11202 1440.11202 – ISO
12.0 9.0 – – 1420.12000 1425.12000 1432.12000 1440.12000 – DIN
12.5 10.0 – – – 1425.12502 1432.12502 1440.12502 – ISO / JIS
14.0 11.0 / 11.2 – – – 1425.14000 1432.14000 1440.14000 – DIN / ISO / JIS
15.0 12.0 – – – 1425.15001 1432.15001 1440.15001 – JIS
16.0 12.0 / 12.5 – – – 1425.16000 1432.16000 1440.16000 – DIN / ISO
17.0 13.0 – – – – 1432.17001 1440.17001 – JIS
18.0 14.0 / 14.5 – – – – 1432.18000 1440.18000 – DIN / ISO
20.0 16.0 – – – – 1432.20000 1440.20000 – DIN / ISO
22.0 18.0 – – – – – 1440.22000 1450.22000 DIN
25.0 20.0 – – – – – – 1450.25000 DIN
28.0 22.0 – – – – – – 1450.28000 DIN
32.0 24.0 – – – – – – 1450.32000 DIN

ER 151
