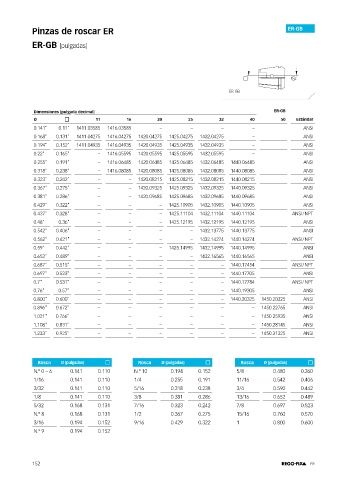

Pinzas de roscar ER ER-GB

ER-GB [pulgadas]

q O

ER-GB
144010000 ER40GB
ER-GB
Dimensiones [pulgada decimal] Schraffurfaktor 0.5
Ø  11 16 20 25 32 40 50 Estándar
Skizzenfaktor 0.35
0.141" 0.11" 1411.03585 1416.03585 – – – – ANSI
Schriftfaktor 0.7
0.168" 0.131" 1411.04275 1416.04275 1420.04275 1425.04275 1432.04275 – ANSI
0.194" 0.152" 1411.04935 1416.04935 1420.04935 1425.04935 1432.04935 – ANSI
0.22" 0.165" – 1416.05595 1420.05595 1425.05595 1432.05595 – ANSI
0.255" 0.191" – 1416.06485 1420.06485 1425.06485 1432.06485 1440.06485 ANSI
0.318" 0.238" – 1416.08085 1420.08085 1425.08085 1432.08085 1440.08085 ANSI
0.323" 0.242" – – 1420.08215 1425.08215 1432.08215 1440.08215 ANSI
0.367" 0.275" – – 1420.09325 1425.09325 1432.09325 1440.09325 ANSI
0.381" 0.286" – – 1420.09685 1425.09685 1432.09685 1440.09685 ANSI
0.429" 0.322" – – – 1425.10905 1432.10905 1440.10905 ANSI
0.437" 0.328" – – – 1425.11104 1432.11104 1440.11104 ANSI / NPT
0.48" 0.36" – – – 1425.12195 1432.12195 1440.12195 ANSI
0.542" 0.406" – – – – 1432.13775 1440.13775 ANSI
0.562" 0.421" – – – – 1432.14274 1440.14274 ANSI / NPT
0.59" 0.442" – – – 1425.14995 1432.14995 1440.14995 ANSI
0.652" 0.489" – – – – 1432.16565 1440.16565 ANSI
0.687" 0.515" – – – – – 1440.17454 ANSI / NPT
0.697" 0.523" – – – – – 1440.17705 ANSI
0.7" 0.531" – – – – – 1440.17784 ANSI / NPT
0.76" 0.57" – – – – – 1440.19305 ANSI
0.800" 0.600" – – – – – 1440.20325 1450.20325 ANSI
0.896" 0.672" – – – – – – 1450.22765 ANSI
1.021" 0.766" – – – – – – 1450.25935 ANSI
1.108" 0.831" – – – – – – 1450.28145 ANSI
1.233" 0.925" – – – – – – 1450.31325 ANSI

Rosca Ø [pulgadas]  Rosca Ø [pulgadas]  Rosca Ø [pulgadas] 
N.º 0 – 6 0.141 0.110 N.º 10 0.194 0.152 5/8 0.480 0.360
1/16 0.141 0.110 1/4 0.255 0.191 11/16 0.542 0.406
3/32 0.141 0.110 5/16 0.318 0.238 3/4 0.590 0.442
1/8 0.141 0.110 3/8 0.381 0.286 13/16 0.652 0.489
5/32 0.168 0.131 7/16 0.323 0.242 7/8 0.697 0.523
N.º 8 0.168 0.131 1/2 0.367 0.275 15/16 0.760 0.570
3/16 0.194 0.152 9/16 0.429 0.322 1 0.800 0.600
N.º 9 0.194 0.152

152 ER
