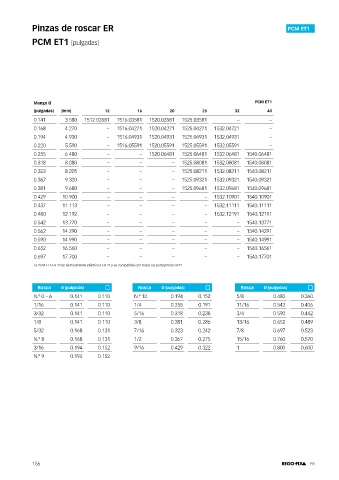

Pinzas de roscar ER PCM ET1

PCM ET1 [pulgadas]

Mango Ø PCM ET1
[pulgadas] [mm] 12 16 20 25 32 40
0.141 3.580 1512.03581 1516.03581 1520.03581 1525.03581 – –
0.168 4.270 – 1516.04271 1520.04271 1525.04271 1532.04721 –
0.194 4.930 – 1516.04931 1520.04931 1525.04931 1532.04931 –
0.220 5.590 – 1516.05591 1520.05591 1525.05591 1532.05591 –
0.255 6.480 – – 1520.06481 1525.06481 1532.06481 1540.06481
0.318 8.080 – – – 1525.08081 1532.08081 1540.08081
0.323 8.205 – – – 1525.08211 1532.08211 1540.08211
0.367 9.320 – – – 1525.09321 1532.09321 1540.09321
0.381 9.680 – – – 1525.09681 1532.09681 1540.09681
0.429 10.900 – – – – 1532.10901 1540.10901
0.437 11.113 – – – – 1532.11111 1540.11111
0.480 12.192 – – – – 1532.12191 1540.12191
0.542 13.770 – – – – – 1540.13771
0.562 14.290 – – – – – 1540.14291
0.590 14.990 – – – – – 1540.14991
0.652 16.560 – – – – – 1540.16561
0.697 17.700 – – – – – 1540.17701
La PCM ET1-ER 12 es técnicamente idéntica a ER 11 y es compatible con todos los portapinzas ER11

Rosca Ø [pulgadas]  Rosca Ø [pulgadas]  Rosca Ø [pulgadas] 
N.º 0 – 6 0.141 0.110 N.º 10 0.194 0.152 5/8 0.480 0.360
1/16 0.141 0.110 1/4 0.255 0.191 11/16 0.542 0.406
3/32 0.141 0.110 5/16 0.318 0.238 3/4 0.590 0.442
1/8 0.141 0.110 3/8 0.381 0.286 13/16 0.652 0.489
5/32 0.168 0.131 7/16 0.323 0.242 7/8 0.697 0.523
N.º 8 0.168 0.131 1/2 0.367 0.275 15/16 0.760 0.570
3/16 0.194 0.152 9/16 0.429 0.322 1 0.800 0.600
N.º 9 0.194 0.152

156 ER
