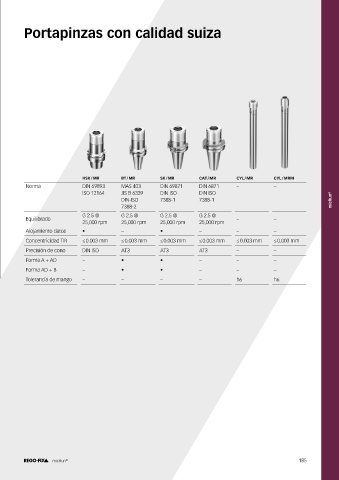

Portapinzas con calidad suiza

HSK / MR BT / MR SK / MR CAT / MR CYL / MR CYL / MRM
Norma DIN 69893 MAS 403 DIN 69871 DIN 6871 – –
ISO 12164 JIS B 6339 DIN ISO DIN ISO
DIN-ISO 7388-1 7388-1 micRun ®
7388-2
G 2.5 @ G 2.5 @ G 2.5 @ G 2.5 @
Equilibrado – –
25,000 rpm 25,000 rpm 25,000 rpm 25,000 rpm
Alojamiento datos • – • – – –
Concentricidad TIR ≤ 0.003 mm ≤ 0.003 mm ≤ 0.003 mm ≤ 0.003 mm ≤ 0.003 mm ≤ 0.003 mm
Precisión de cono DIN ISO AT3 AT3 AT3 – –
Forma A + AD – • • – – –
Forma AD + B – • • – – –

Tolerancia de mango – – – – h6 h6

micRun ® 185
