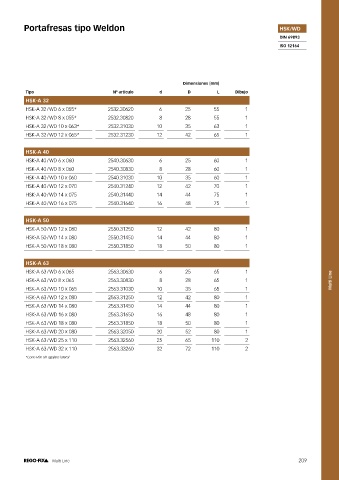

Portafresas tipo Weldon HSK/WD

DIN 69893
ISO 12164

Dimensiones [mm]
Tipo Nº artículo d D L Dibujo
HSK-A 32
HSK-A 32 / WD 6 x 055* 2532.30620 6 25 55 1
HSK-A 32 / WD 8 x 055* 2532.30820 8 28 55 1
HSK-A 32 / WD 10 x 063* 2532.31030 10 35 63 1
HSK-A 32 / WD 12 x 065* 2532.31230 12 42 65 1

HSK-A 40
HSK-A 40 / WD 6 x 060 2540.30630 6 25 60 1
HSK-A 40 / WD 8 x 060 2540.30830 8 28 60 1
HSK-A 40 / WD 10 x 060 2540.31030 10 35 60 1
HSK-A 40 / WD 12 x 070 2540.31240 12 42 70 1
HSK-A 40 / WD 14 x 075 2540.31440 14 44 75 1
HSK-A 40 / WD 16 x 075 2540.31640 16 48 75 1

HSK-A 50
HSK-A 50 / WD 12 x 080 2550.31250 12 42 80 1
HSK-A 50 / WD 14 x 080 2550.31450 14 44 80 1
HSK-A 50 / WD 18 x 080 2550.31850 18 50 80 1

HSK-A 63
HSK-A 63 / WD 6 x 065 2563.30630 6 25 65 1
HSK-A 63 / WD 8 x 065 2563.30830 8 28 65 1 Multi Line
HSK-A 63 / WD 10 x 065 2563.31030 10 35 65 1
HSK-A 63 / WD 12 x 080 2563.31250 12 42 80 1
HSK-A 63 / WD 14 x 080 2563.31450 14 44 80 1
HSK-A 63 / WD 16 x 080 2563.31650 16 48 80 1
HSK-A 63 / WD 18 x 080 2563.31850 18 50 80 1
HSK-A 63 / WD 20 x 080 2563.32050 20 52 80 1
HSK-A 63 / WD 25 x 110 2563.32560 25 65 110 2
HSK-A 63 / WD 32 x 110 2563.33260 32 72 110 2
*Cono HSK sin agujero lateral
