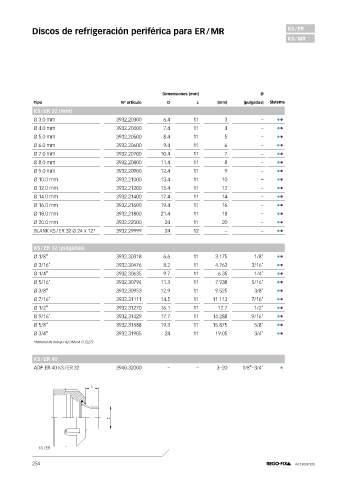

Discos de refrigeración periférica para ER / MR KS / ER
KS / MR

Dimensiones [mm] Ø
Tipo Nº artículo D L [mm] [pulgadas] Sistema
KS / ER 32 [mm]
Ø 3.0 mm 3932.20300 6.4 11 3 – ••
Ø 4.0 mm 3932.20400 7.4 11 4 – ••
Ø 5.0 mm 3932.20500 8.4 11 5 – ••
Ø 6.0 mm 3932.20600 9.4 11 6 – ••
Ø 7.0 mm 3932.20700 10.4 11 7 – ••
Ø 8.0 mm 3932.20800 11.4 11 8 – ••
Ø 9.0 mm 3932.20900 12.4 11 9 – ••
Ø 10.0 mm 3932.21000 13.4 11 10 – ••
Ø 12.0 mm 3932.21200 15.4 11 12 – ••
Ø 14.0 mm 3932.21400 17.4 11 14 – ••
Ø 16.0 mm 3932.21600 19.4 11 16 – ••
Ø 18.0 mm 3932.21800 21.4 11 18 – ••
Ø 20.0 mm 3932.22000 24 11 20 – ••
BLANK KS / ER 32 Ø 24 x 12* 3932.29999 24 12 – – ••

KS / ER 32 [pulgadas]
Ø 1/8" 3932.30318 6.6 11 3.175 1/8" ••
Ø 3/16" 3932.30476 8.2 11 4.763 3/16" ••
Ø 1/4" 3932.30635 9.7 11 6.35 1/4" ••
Ø 5/16" 3932.30794 11.3 11 7.938 5/16" ••
Ø 3/8" 3932.30953 12.9 11 9.525 3/8" ••
Ø 7/16" 3932.31111 14.5 11 11.113 7/16" ••
Ø 1/2" 3932.31270 16.1 11 12.7 1/2" ••
Ø 9/16" 3932.31429 17.7 11 14.288 9/16" ••
Ø 5/8" 3932.31588 19.3 11 15.875 5/8" ••
Ø 3/4" 3932.31905 24 11 19.05 3/4" ••
*Material de trabajo: 42CrMoS4 (1.7227).

KS / ER 40
ADP ER 40 KS / ER 32 3940.32000 – – 3–20 1/8"–3/4" •

L

D

KS / ER

254 Accesorios
