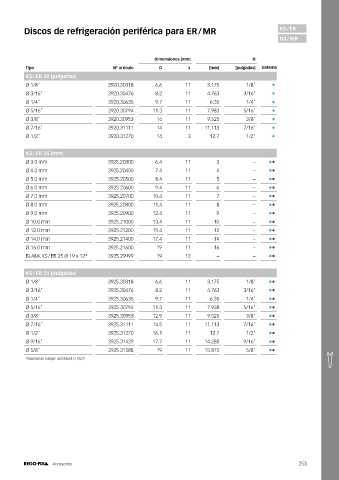

Discos de refrigeración periférica para ER / MR KS / ER
DS / MR

Dimensiones [mm] Ø
Tipo Nº artículo D L [mm] [pulgadas] Sistema
KS / ER 20 [pulgadas]
Ø 1/8" 3920.30318 6.6 11 3.175 1/8" •
Ø 3/16" 3920.30476 8.2 11 4.763 3/16" •
Ø 1/4" 3920.30635 9.7 11 6.35 1/4" •
Ø 5/16" 3920.30794 11.3 11 7.983 5/16" •
Ø 3/8" 3920.30953 14 11 9.525 3/8" •
Ø 7/16" 3920.31111 14 11 11.113 7/16" •
Ø 1/2" 3920.31270 14 3 12.7 1/2" •

KS / ER 25 [mm]
Ø 3.0 mm 3925.20300 6.4 11 3 – ••
Ø 4.0 mm 3925.20400 7.4 11 4 – ••
Ø 5.0 mm 3925.20500 8.4 11 5 – ••
Ø 6.0 mm 3925.20600 9.4 11 6 – ••
Ø 7.0 mm 3925.20700 10.4 11 7 – ••
Ø 8.0 mm 3925.20800 11.4 11 8 – ••
Ø 9.0 mm 3925.20900 12.4 11 9 – ••
Ø 10.0 mm 3925.21000 13.4 11 10 – ••
Ø 12.0 mm 3925.21200 15.4 11 12 – ••
Ø 14.0 mm 3925.21400 17.4 11 14 – ••
Ø 16.0 mm 3925.21600 19 11 16 – ••
BLANK KS / ER 25 Ø 19 x 12* 3925.29999 19 12 – – ••

KS / ER 25 [pulgadas]
Ø 1/8" 3925.30318 6.6 11 3.175 1/8" ••
Ø 3/16" 3925.30476 8.2 11 4.763 3/16" ••
Ø 1/4" 3925.30635 9.7 11 6.35 1/4" ••
Ø 5/16" 3925.30794 11.3 11 7.938 5/16" ••
Ø 3/8" 3925.30953 12.9 11 9.525 3/8" ••
Ø 7/16" 3925.31111 14.5 11 11.113 7/16" ••
Ø 1/2" 3925.31270 16.1 11 12.7 1/2" ••
Ø 9/16" 3925.31429 17.7 11 14.288 9/16" ••
Ø 5/8" 3925.31588 19 11 15.875 5/8" ••
*Material de trabajo: 42CrMoS4 (1.7227)
