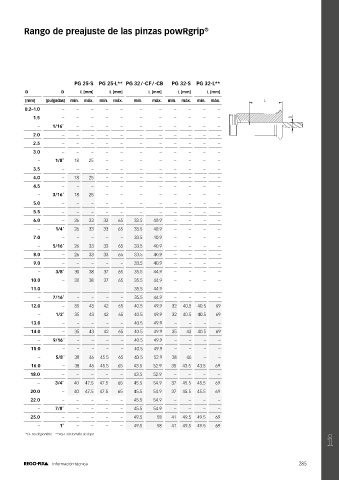

Rango de preajuste de las pinzas powRgrip ®

PG 25-S PG 25-L** PG 32 / -CF / -CB PG 32-S PG 32-L**
D D L [mm] L [mm] L [mm] L [mm] L [mm]
[mm] [pulgadas] mín. máx. mín. máx. mín. máx. mín. máx. mín. máx. L
0.2–1.0 – – – – – – – – – – –
1.5 – – – – – – – – – – – D
– 1/16" – – – – – – – – – –
2.0 – – – – – – – – – – –
2.5 – – – – – – – – – – –
3.0 – – – – – – – – – – – Einspannlänge PG__S13_7_Skizze1
– 1/8" 18 25 – – – – – – – – Schraffurfaktor 1
Skizzenfaktor 0.75
3.5 – – – – – – – – – – –
Schriftfaktor 0.7
4.0 – 18 25 – – – – – – – –
4.5 – – – – – – – – – – –
– 3/16" 18 25 – – – – – – – –
5.0 – – – – – – – – – – –
5.5 – – – – – – – – – – –
6.0 – 26 33 33 65 33.5 40.9 – – – –
– 1/4" 26 33 33 65 33.5 40.9 – – – –
7.0 – – – – – 33.5 40.9 – – – –
– 5/16" 26 33 33 65 33.5 40.9 – – – –
8.0 – 26 33 33 65 33.5 40.9 – – – –
9.0 – – – – – 33.5 40.9 – – – –
– 3/8" 30 38 37 65 35.5 44.9 – – – –
10.0 – 30 38 37 65 35.5 44.9 – – – –
11.0 – – – – – 35.5 44.9 – – – –
– 7/16" – – – – 35.5 44.9 – – – –
12.0 – 35 43 42 65 40.5 49.9 32 40.5 40.5 69
– 1/2" 35 43 42 65 40.5 49.9 32 40.5 40.5 69
13.0 – – – – – 40.5 49.9 – – – –
14.0 – 35 43 42 65 40.5 49.9 35 43 40.5 69
– 9/16" – – – – 40.5 49.9 – – – –
15.0 – – – – – 40.5 49.9 – – – –
– 5/8" 38 46 45.5 65 43.5 52.9 38 46 – –
16.0 – 38 46 45.5 65 43.5 52.9 35 43.5 43.5 69
18.0 – – – – – 43.5 52.9 – – – –
– 3/4" 40 47.5 47.5 65 45.5 54.9 37 45.5 45.5 69
20.0 – 40 47.5 47.5 65 45.5 54.9 37 45.5 45.5 69
22.0 – – – – – 45.5 54.9 – – – –
– 7/8" – – – – 45.5 54.9 – – – –
25.0 – – – – – 49.5 58 41 49.5 49.5 69
– 1" – – – – 49.5 58 41 49.5 49.5 69
*CF no disponible **PG-L sin tornillo de tope
