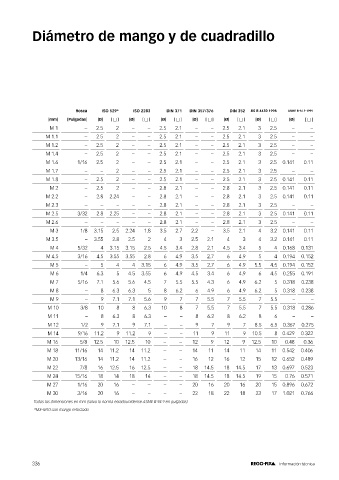

Diámetro de mango y de cuadradillo

Rosca ISO 529* ISO 2283 DIN 371 DIN 357/376 DIN 352 JIS B 4430 1998 ASME B 94.9 1999
[mm] [Pulgadas] [Ø] [ ] [Ø] [ ] [Ø] [ ] [Ø] [ ] [Ø] [ ] [Ø] [ ] [Ø] [ ]
M 1 – 2.5 2 – – 2.5 2.1 – – 2.5 2.1 3 2.5 – –
M 1.1 – 2.5 2 – – 2.5 2.1 – – 2.5 2.1 3 2.5 – –
M 1.2 – 2.5 2 – – 2.5 2.1 – – 2.5 2.1 3 2.5 – –
M 1.4 – 2.5 2 – – 2.5 2.1 – – 2.5 2.1 3 2.5 – –
M 1.6 1/16 2.5 2 – – 2.5 2.1 – – 2.5 2.1 3 2.5 0.141 0.11
M 1.7 – – 2 – – 2.5 2.1 – – 2.5 2.1 3 2.5 – –
M 1.8 – 2.5 2 – – 2.5 2.1 – – 2.5 2.1 3 2.5 0.141 0.11
M 2 – 2.5 2 – – 2.8 2.1 – – 2.8 2.1 3 2.5 0.141 0.11
M 2.2 – 2.8 2.24 – – 2.8 2.1 – – 2.8 2.1 3 2.5 0.141 0.11
M 2.3 – – – – – 2.8 2.1 – – 2.8 2.1 3 2.5 – –
M 2.5 3/32 2.8 2.25 – – 2.8 2.1 – – 2.8 2.1 3 2.5 0.141 0.11
M 2.6 – – – – – 2.8 2.1 – – 2.8 2.1 3 2.5 – –
M 3 1/8 3.15 2.5 2.24 1.8 3.5 2.7 2.2 – 3.5 2.1 4 3.2 0.141 0.11
M 3.5 – 3.55 2.8 2.5 2 4 3 2.5 2.1 4 3 4 3.2 0.141 0.11
M 4 5/32 4 3.15 3.15 2.5 4.5 3.4 2.8 2.1 4.5 3.4 5 4 0.168 0.131
M 4.5 3/16 4.5 3.55 3.55 2.8 6 4.9 3.5 2.7 6 4.9 5 4 0.194 0.152
M 5 – 5 4 4 3.15 6 4.9 3.5 2.7 6 4.9 5.5 4.5 0.194 0.152
M 6 1/4 6.3 5 4.5 3.55 6 4.9 4.5 3.4 6 4.9 6 4.5 0.255 0.191
M 7 5/16 7.1 5.6 5.6 4.5 7 5.5 5.5 4.3 6 4.9 6.2 5 0.318 0.238
M 8 – 8 6.3 6.3 5 8 6.2 6 4.9 6 4.9 6.2 5 0.318 0.238
M 9 – 9 7.1 7.1 5.6 9 7 7 5.5 7 5.5 7 5.5 – –
M 10 3/8 10 8 8 6.3 10 8 7 5.5 7 5.5 7 5.5 0.318 0.286
M 11 – 8 6.3 8 6.3 – – 8 6.2 8 6.2 8 6 – –
M 12 1/2 9 7.1 9 7.1 – – 9 7 9 7 8.5 6.5 0.367 0.275
M 14 9/16 11.2 9 11.2 9 – – 11 9 11 9 10.5 8 0.429 0.322
M 16 5/8 12.5 10 12.5 10 – – 12 9 12 9 12.5 10 0.48 0.36
M 18 11/16 14 11.2 14 11.2 – – 14 11 14 11 14 11 0.542 0.406
M 20 13/16 14 11.2 14 11.2 – – 16 12 16 12 15 12 0.652 0.489
M 22 7/8 16 12.5 16 12.5 – – 18 14.5 18 14.5 17 13 0.697 0.523
M 24 15/16 18 14 18 14 – – 18 14.5 18 14.5 19 15 0.76 0.571
M 27 1/16 20 16 – – – – 20 16 20 16 20 15 0.896 0.672
M 30 3/16 20 16 – – – – 22 18 22 18 23 17 1.021 0.766
Todas las dimensiones en mm (salvo la norma estadounidense ASME B 94.9 en pulgadas)
*M3–M10 con mango reforzado

336 Información técnica
