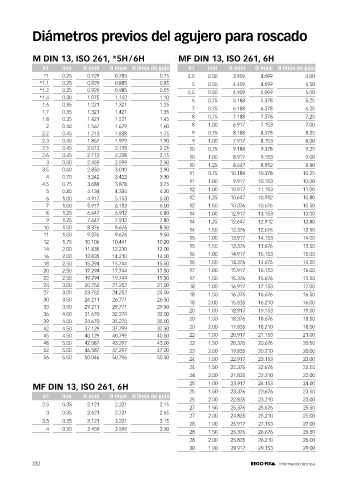

Diámetros previos del agujero para roscado

M DIN 13, ISO 261, *5H / 6H MF DIN 13, ISO 261, 6H
d1 mm Ø mini Ø maxi Ø línea de guía d1 mm Ø mini Ø maxi Ø línea de guía
*1 0.25 0.729 0.785 0.75 4.5 0.50 3.959 4.099 4.00
*1.1 0.25 0.829 0.885 0.85 5 0.50 4.459 4.599 4.50
*1.2 0.25 0.929 0.985 0.95 5.5 0.50 4.959 5.099 5.00
*1.4 0.30 1.075 1.142 1.10 6 0.75 5.188 5.378 5.25
1.6 0.35 1.221 1.321 1.25
1.7 0.35 1.321 1.421 1.35 7 0.75 6.188 6.378 6.25
1.8 0.35 1.421 1.521 1.45 8 0.75 7.188 7.378 7.25
2 0.40 1.567 1.679 1.60 8 1.00 6.917 7.153 7.00
2.2 0.45 1.713 1.838 1.75 9 0.75 8.188 8.378 8.25
2.3 0.40 1.867 1.979 1.90 9 1.00 7.917 8.153 8.00
2.5 0.45 2.013 2.138 2.05 10 0.75 9.188 9.378 9.25
2.6 0.45 2.113 2.238 2.15 10 1.00 8.917 9.153 9.00
3 0.50 2.459 2.599 2.50 10 1.25 8.647 8.912 8.80
3.5 0.60 2.850 3.010 2.90 11 0.75 10.188 10.378 10.25
4 0.70 3.242 3.422 3.30
4.5 0.75 3.688 3.878 3.75 11 1.00 9.917 10.153 10.00
5 0.80 4.134 4.334 4.20 12 1.00 10.917 11.153 11.00
6 1.00 4.917 5.153 5.00 12 1.25 10.647 10.912 10.80
7 1.00 5.917 6.153 6.00 12 1.50 10.376 10.676 10.50
8 1.25 6.647 6.912 6.80 14 1.00 12.917 13.153 13.00
9 1.25 7.647 7.912 7.80 14 1.25 12.647 12.912 12.80
10 1.50 8.376 8.676 8.50 14 1.50 12.376 12.676 12.50
11 1.50 9.376 9.676 9.50 15 1.00 13.917 14.153 14.00
12 1.75 10.106 10.441 10.20
14 2.00 11.835 12.210 12.00 15 1.50 13.376 13.676 13.50
16 2.00 13.835 14.210 14.00 16 1.00 14.917 15.153 15.00
18 2.50 15.294 15.744 15.50 16 1.50 14.376 14.676 14.50
20 2.50 17.294 17.744 17.50 17 1.00 15.917 16.153 16.00
22 2.50 19.294 19.744 19.50 17 1.50 15.376 15.676 15.50
24 3.00 20.752 21.252 21.00 18 1.00 16.917 17.153 17.00
27 3.00 23.752 24.252 24.00 18 1.50 16.376 16.676 16.50
30 3.50 26.211 26.771 26.50 18 2.00 15.835 16.210 16.00
33 3.50 29.211 29.771 29.50 20 1.00 18.917 19.153 19.00
36 4.00 31.670 32.270 32.00
39 4.00 34.670 35.270 35.00 20 1.50 18.376 18.676 18.50
42 4.50 37.129 37.799 37.50 20 2.00 17.835 18.210 18.00
45 4.50 40.129 40.799 40.50 22 1.00 20.917 21.153 21.00
48 5.00 42.587 43.297 43.00 22 1.50 20.376 20.676 20.50
52 5.00 46.587 47.297 47.00 22 2.00 19.835 20.210 20.00
56 5.50 50.046 50.796 50.50 24 1.00 22.917 23.153 23.00
24 1.50 22.376 22.676 22.50
24 2.00 21.835 22.210 22.00
MF DIN 13, ISO 261, 6H 25 1.00 23.917 24.153 24.00
25 1.50 23.376 23.676 23.50
d1 mm Ø mini Ø maxi Ø línea de guía
25 2.00 22.835 23.210 23.00
2.5 0.35 2.121 2.221 2.15
27 1.50 25.376 25.676 25.50
3 0.35 2.621 2.721 2.65
27 2.00 24.835 25.210 25.00
3.5 0.35 3.121 3.221 3.15
28 1.00 26.917 27.153 27.00
4 0.50 3.459 3.599 3.50 28 1.50 26.376 26.676 26.50
28 2.00 25.835 26.210 26.00
30 1.00 28.917 29.153 29.00
