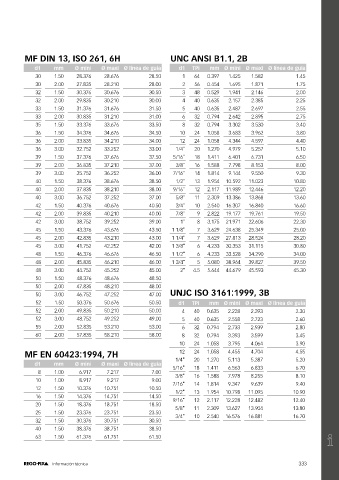

MF DIN 13, ISO 261, 6H UNC ANSI B1.1, 2B
d1 mm Ø mini Ø maxi Ø línea de guía d1 TPI mm Ø mini Ø maxi Ø línea de guía
30 1.50 28.376 28.676 28.50 1 64 0.397 1.425 1.582 1.45
30 2.00 27.835 28.210 28.00 2 56 0.454 1.695 1.871 1.75
32 1.50 30.376 30.676 30.50 3 48 0.529 1.941 2.146 2.00
32 2.00 29.835 30.210 30.00 4 40 0.635 2.157 2.385 2.25
33 1.50 31.376 31.676 31.50 5 40 0.635 2.487 2.697 2.55
33 2.00 30.835 31.210 31.00 6 32 0.794 2.642 2.895 2.75
35 1.50 33.376 33.676 33.50 8 32 0.794 3.302 3.530 3.40
36 1.50 34.376 34.676 34.50 10 24 1.058 3.683 3.962 3.80
36 2.00 33.835 34.210 34.00 12 24 1.058 4.344 4.597 4.40
36 3.00 32.752 33.252 33.00 1/4" 20 1.270 4.979 5.257 5.10
39 1.50 37.376 37.676 37.50 5/16" 18 1.411 6.401 6.731 6.50
39 2.00 36.835 37.210 37.00 3/8" 16 1.588 7.798 8.153 8.00
39 3.00 35.752 36.252 36.00 7/16" 14 1.814 9.144 9.550 9.30
40 1.50 38.376 38.676 38.50 1/2" 13 1.954 10.592 11.023 10.80
40 2.00 37.835 38.210 38.00 9/16" 12 2.117 11.989 12.446 12.20
40 3.00 36.752 37.252 37.00 5/8" 11 2.309 13.386 13.868 13.60
42 1.50 40.376 40.676 40.50 3/4" 10 2.540 16.307 16.840 16.60
42 2.00 39.835 40.210 40.00 7/8" 9 2.822 19.177 19.761 19.50
42 3.00 38.752 39.252 39.00 1" 8 3.175 21.971 22.606 22.30
45 1.50 43.376 43.676 43.50 1 1/8" 7 3.629 24.638 25.349 25.00
45 2.00 42.835 43.210 43.00 1 1/4" 7 3.629 27.813 28.524 28.20
45 3.00 41.752 42.252 42.00 1 3/8" 6 4.233 30.353 31.115 30.80
48 1.50 46.376 46.676 46.50 1 1/2" 6 4.233 33.528 34.290 34.00
48 2.00 45.835 46.210 46.00 1 3/4" 5 5.080 38.964 39.827 39.50
48 3.00 44.752 45.252 45.00 2" 4.5 5.644 44.679 45.593 45.30
50 1.50 48.376 48.676 48.50
50 2.00 47.835 48.210 48.00
50 3.00 46.752 47.252 47.00 UNJC ISO 3161:1999, 3B
52 1.50 50.376 50.676 50.50 d1 TPI mm Ø mini Ø maxi Ø línea de guía
52 2.00 49.835 50.210 50.00 4 40 0.635 2.228 2.393 2.30
52 3.00 48.752 49.252 49.00 5 40 0.635 2.558 2.723 2.60
55 2.00 52.835 53.210 53.00 6 32 0.794 2.733 2.939 2.80
60 2.00 57.835 58.210 58.00 8 32 0.794 3.393 3.599 3.45
10 24 1.058 3.795 4.064 3.90
MF EN 60423:1994, 7H 12 24 1.058 4.455 4.704 4.55
1/4" 20 1.270 5.113 5.387 5.20
d1 mm Ø mini Ø maxi Ø línea de guía
5/16" 18 1.411 6.563 6.833 6.70
8 1.00 6.917 7.217 7.00
3/8"
10 1.00 8.917 9.217 9.00 7/16" 16 1.588 7.978 8.255 8.10
1.814
9.347
14
9.40
9.639
12 1.50 10.376 10.751 10.50 1/2" 13 1.954 10.798 11.095 10.90
16 1.50 14.376 14.751 14.50
9/16" 12 2.117 12.228 12.482 12.40
20 1.50 18.376 18.751 18.50
5/8" 11 2.309 13.627 13.904 13.80
25 1.50 23.376 23.751 23.50
3/4" 10 2.540 16.576 16.881 16.70
32 1.50 30.376 30.751 30.50
40 1.50 38.376 38.751 38.50
63 1.50 61.376 61.751 61.50
