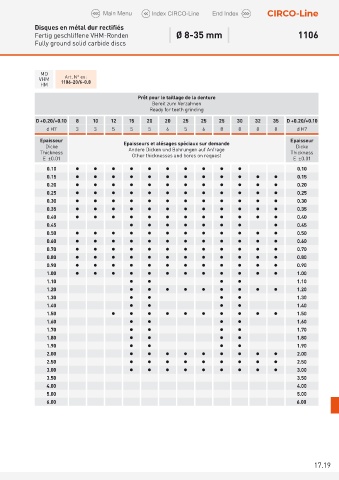

Disques en métal dur rectifiés
Fertig geschliffene VHM-Ronden Ø 8-35 mm 1106
Fully ground solid carbide discs

MD
VHM Art. N° ex :
HM 1106-20/6-0.8
Prêt pour le taillage de la denture
Bereit zum Verzahnen
Ready for teeth grinding
D +0.20/+0.10 8 10 12 15 20 20 25 25 25 30 32 35 D +0.20/+0.10
d H 7 3 3 5 5 5 6 5 6 8 8 8 8 d H 7
Epaisseur Epaisseur
Dicke Epaisseurs et alésages spéciaux sur demande Dicke
Thickness Andere Dicken und Bohrungen auf Anfrage Thickness
Other thicknesses and bores on request
E ±0.01 E ±0.01
0.10           0.10
0.15             0.15
0.20             0.20
0.25             0.25
0.30             0.30
0.35             0.35
0.40             0.40
0.45         0.45
0.50             0.50
0.60             0.60
0.70             0.70
0.80             0.80
0.90             0.90
1.00             1.00
1.10     1.10
1.20          1.20
1.30     1.30
1.40     1.40
1.50           1.50
1.60     1.60
1.70     1.70
1.80     1.80
1.90     1.90
2.00          2.00
2.50          2.50
3.00          3.00
3.50 3.50
4.00 4.00
5.00 5.00
6.00 6.00
