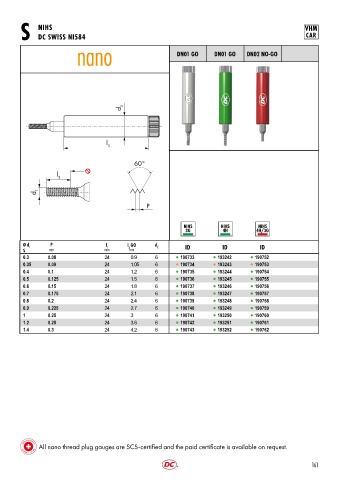

NIHS VHM
S DC SWISS NI584 CAR

DN01 GO DN01 GO DN02 NO-GO

d 2

l
1

l
2

d 1

P

NIHS NIHS NIHS
3G 4H 4H/3G

Ø d 1 P l 1 l GO d 2 ID ID ID
2
S mm mm mm
0.3 0.08 24 0.9 6 l 190733 l 193242 l 190752
0.35 0.09 24 1.05 6 l 190734 l 193243 l 190753
0.4 0.1 24 1.2 6 l 190735 l 193244 l 190754
0.5 0.125 24 1.5 6 l 190736 l 193245 l 190755
0.6 0.15 24 1.8 6 l 190737 l 193246 l 190756
0.7 0.175 24 2.1 6 l 190738 l 193247 l 190757
0.8 0.2 24 2.4 6 l 190739 l 193248 l 190758
0.9 0.225 24 2.7 6 l 190740 l 193249 l 190759
1 0.25 24 3 6 l 190741 l 193250 l 190760
1.2 0.25 24 3.6 6 l 190742 l 193251 l 190761
1.4 0.3 24 4.2 6 l 190743 l 193252 l 190762

All nano thread plug gauges are SCS-certified and the paid certificate is available on request.
