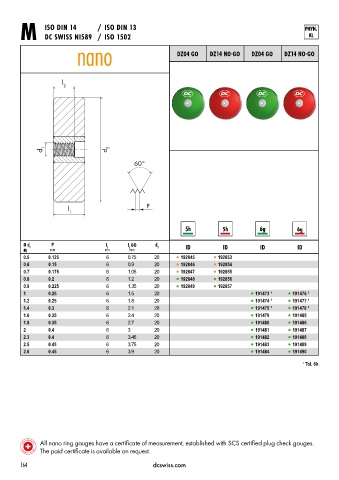

Page 167 - DC_SWISS(Catalogue_TM_ES-EN)

ISO DIN 14 / ISO DIN 13
M DC SWISS NI589 / ISO 1502

DZ04 GO DZ14 NOªGO DZ04 GO DZ14 NOªGO

l
2

d 1

l P
1

Ø d 1 P l 1 l GO d 2 ID ID ID ID
2
M mm mm mm
0.5 0.125 6 0.75 20 l 192845 l 192853
0.6 0.15 6 0.9 20 l 192846 l 192854
0.7 0.175 6 1.05 20 l 192847 l 192855
0.8 0.2 6 1.2 20 l 192848 l 192856
0.9 0.225 6 1.35 20 l 192849 l 192857
1 0.25 6 1.5 20 l 191473 1 l 191476 1
1.2 0.25 6 1.8 20 l 191474 1 l 191477 1
1.4 0.3 6 2.1 20 l 191475 1 l 191478 1
1.6 0.35 6 2.4 20 l 191479 l 191485
1.8 0.35 6 2.7 20 l 191480 l 191486
2 0.4 6 3 20 l 191481 l 191487
2.3 0.4 6 3.45 20 l 191482 l 191488
2.5 0.45 6 3.75 20 l 191483 l 191489
2.6 0.45 6 3.9 20 l 191484 l 191490

1 Tol. 6h

All nano ring gauges have a certificate of measurement, established with SCS certified plug check gauges.
The paid certificate is available on request.
