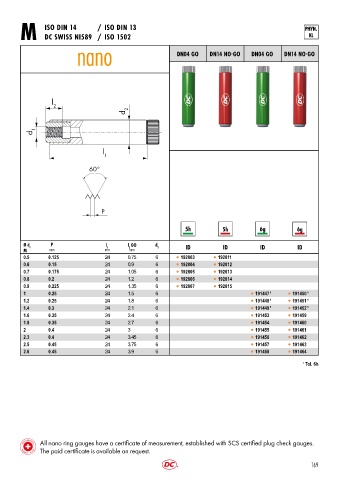

Page 172 - DC_SWISS(Catalogue_TM_ES-EN)

ISO DIN 14 / ISO DIN 13
M DC SWISS NI589 / ISO 1502

DN04 GO DN14 NOªGO DN04 GO DN14 NOªGO

l
2
d 2

d 1

l
1

P

Ø d 1 P l 1 l GO d 2 ID ID ID ID
2
M mm mm mm
0.5 0.125 24 0.75 6 l 192803 l 192811
0.6 0.15 24 0.9 6 l 192804 l 192812
0.7 0.175 24 1.05 6 l 192805 l 192813
0.8 0.2 24 1.2 6 l 192806 l 192814
0.9 0.225 24 1.35 6 l 192807 l 192815
1 0.25 24 1.5 6 l 191447 1 l 191450 1
1.2 0.25 24 1.8 6 l 191448 1 l 191451 1
1.4 0.3 24 2.1 6 l 191449 1 l 191452 1
1.6 0.35 24 2.4 6 l 191453 l 191459
1.8 0.35 24 2.7 6 l 191454 l 191460
2 0.4 24 3 6 l 191455 l 191461
2.3 0.4 24 3.45 6 l 191456 l 191462
2.5 0.45 24 3.75 6 l 191457 l 191463
2.6 0.45 24 3.9 6 l 191458 l 191464

1 Tol. 6h

All nano ring gauges have a certificate of measurement, established with SCS certified plug check gauges.
