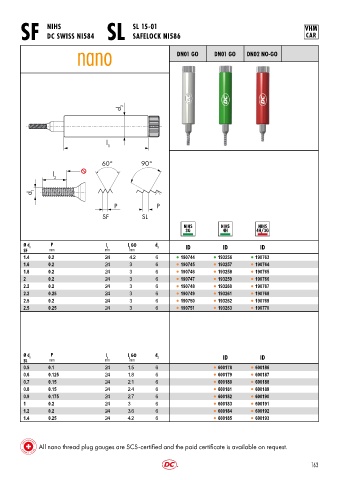

Page 166 - DC_SWISS(Catalogue_TM_ES-EN)

SF SF NIHS SL SL 15-01 VHM

CAR
DC SWISS NI584
SAFELOCK NI586
DN01 GO DN01 GO DN02 NO-GO

d 2

l
1

l
2

d 1

P P

SF SL
NIHS NIHS NIHS
3G 4H 4H/3G

Ø d 1 P l 1 l GO d 2 ID ID ID
2
SF mm mm mm
1.4 0.2 24 4.2 6 l 190744 l 193256 l 190763
1.6 0.2 24 3 6 l 190745 l 193257 l 190764
1.8 0.2 24 3 6 l 190746 l 193258 l 190765
2 0.2 24 3 6 l 190747 l 193259 l 190766
2.2 0.2 24 3 6 l 190748 l 193260 l 190767
2.2 0.25 24 3 6 l 190749 l 193261 l 190768
2.5 0.2 24 3 6 l 190750 l 193262 l 190769
2.5 0.25 24 3 6 l 190751 l 193263 l 190770

Ø d 1 P l 1 l GO d 2 ID ID
2
SL mm mm mm
0.5 0.1 24 1.5 6 l 600178 l 600186
0.6 0.125 24 1.8 6 l 600179 l 600187
0.7 0.15 24 2.1 6 l 600180 l 600188
0.8 0.15 24 2.4 6 l 600181 l 600189
0.9 0.175 24 2.7 6 l 600182 l 600190
1 0.2 24 3 6 l 600183 l 600191
1.2 0.2 24 3.6 6 l 600184 l 600192
1.4 0.25 24 4.2 6 l 600185 l 600193

All nano thread plug gauges are SCS-certified and the paid certificate is available on request.

163
