Page 194 - DC_SWISS(Catalogue_TM_ES-EN)
P. 194

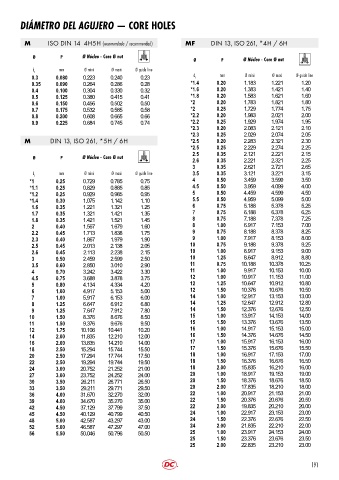

DIÁMETRO DEL AGUJERO — CORE HOLES
M ISO DIN 14 4H5H (recomendado / recommended) MF DIN 13, ISO 261, *4H / 6H
Ø P Ø Núcleo - Core Ø nut
Ø P Ø Núcleo - Core Ø nut
d 1 mm Ø mini Ø maxi Ø guide line
0.3 0.080 0.223 0.240 0.23 d 1 mm Ø mini Ø maxi Ø guide line
0.35 0.090 0.264 0.286 0.28 *1.4 0.20 1.183 1.221 1.20
0.4 0.100 0.304 0.330 0.32 *1.6 0.20 1.383 1.421 1.40
0.5 0.125 0.380 0.415 0.41 *1.8 0.20 1.583 1.621 1.60
0.6 0.150 0.456 0.502 0.50 *2 0.20 1.783 1.821 1.80
0.7 0.175 0.532 0.585 0.58 *2 0.25 1.729 1.774 1.75
0.8 0.200 0.608 0.665 0.66 *2.2 0.20 1.983 2.021 2.00
0.9 0.225 0.684 0.745 0.74 *2.2 0.25 1.929 1.974 1.95
*2.3 0.20 2.083 2.121 2.10
*2.3 0.25 2.029 2.074 2.05
M DIN 13, ISO 261, *5H / 6H *2.5 0.20 2.283 2.321 2.30
*2.5 0.25 2.229 2.274 2.25
2.5 0.35 2.121 2.221 2.15
Ø P Ø Núcleo - Core Ø nut
2.6 0.35 2.221 2.321 2.25
3 0.35 2.621 2.721 2.65
d 1 mm Ø mini Ø maxi Ø guide line 3.5 0.35 3.121 3.221 3.15
*1 0.25 0.729 0.785 0.75 4 0.50 3.459 3.599 3.50
*1.1 0.25 0.829 0.885 0.85 4.5 0.50 3.959 4.099 4.00
*1.2 0.25 0.929 0.985 0.95 5 0.50 4.459 4.599 4.50
*1.4 0.30 1.075 1.142 1.10 5.5 0.50 4.959 5.099 5.00
1.6 0.35 1.221 1.321 1.25 6 0.75 5.188 5.378 5.25
1.7 0.35 1.321 1.421 1.35 7 0.75 6.188 6.378 6.25
1.8 0.35 1.421 1.521 1.45 8 0.75 7.188 7.378 7.25
2 0.40 1.567 1.679 1.60 8 1.00 6.917 7.153 7.00
2.2 0.45 1.713 1.838 1.75 9 0.75 8.188 8.378 8.25
2.3 0.40 1.867 1.979 1.90 9 1.00 7.917 8.153 8.00
2.5 0.45 2.013 2.138 2.05 10 0.75 9.188 9.378 9.25
2.6 0.45 2.113 2.238 2.15 10 1.00 8.917 9.153 9.00
3 0.50 2.459 2.599 2.50 10 1.25 8.647 8.912 8.80
3.5 0.60 2.850 3.010 2.90 11 0.75 10.188 10.378 10.25
4 0.70 3.242 3.422 3.30 11 1.00 9.917 10.153 10.00
4.5 0.75 3.688 3.878 3.75 12 1.00 10.917 11.153 11.00
5 0.80 4.134 4.334 4.20 12 1.25 10.647 10.912 10.80
6 1.00 4.917 5.153 5.00 12 1.50 10.376 10.676 10.50
7 1.00 5.917 6.153 6.00 14 1.00 12.917 13.153 13.00
8 1.25 6.647 6.912 6.80 14 1.25 12.647 12.912 12.80
9 1.25 7.647 7.912 7.80 14 1.50 12.376 12.676 12.50
10 1.50 8.376 8.676 8.50 15 1.00 13.917 14.153 14.00
11 1.50 9.376 9.676 9.50 15 1.50 13.376 13.676 13.50
12 1.75 10.106 10.441 10.20 16 1.00 14.917 15.153 15.00
14 2.00 11.835 12.210 12.00 16 1.50 14.376 14.676 14.50
16 2.00 13.835 14.210 14.00 17 1.00 15.917 16.153 16.00
18 2.50 15.294 15.744 15.50 17 1.50 15.376 15.676 15.50
20 2.50 17.294 17.744 17.50 18 1.00 16.917 17.153 17.00
22 2.50 19.294 19.744 19.50 18 1.50 16.376 16.676 16.50
24 3.00 20.752 21.252 21.00 18 2.00 15.835 16.210 16.00
27 3.00 23.752 24.252 24.00 20 1.00 18.917 19.153 19.00
30 3.50 26.211 26.771 26.50 20 1.50 18.376 18.676 18.50
33 3.50 29.211 29.771 29.50 20 2.00 17.835 18.210 18.00
36 4.00 31.670 32.270 32.00 22 1.00 20.917 21.153 21.00
39 4.00 34.670 35.270 35.00 22 1.50 20.376 20.676 20.50
42 4.50 37.129 37.799 37.50 22 2.00 19.835 20.210 20.00
45 4.50 40.129 40.799 40.50 24 1.00 22.917 23.153 23.00
48 5.00 42.587 43.297 43.00 24 1.50 22.376 22.676 22.50
52 5.00 46.587 47.297 47.00 24 2.00 21.835 22.210 22.00
56 5.50 50.046 50.796 50.50 25 1.00 23.917 24.153 24.00
25 1.50 23.376 23.676 23.50
25 2.00 22.835 23.210 23.00
191
