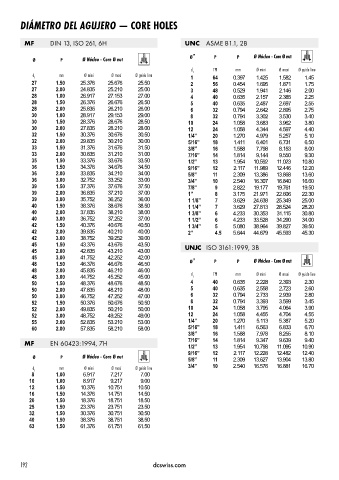

DIÁMETRO DEL AGUJERO — CORE HOLES

MF DIN 13, ISO 261, 6H UNC ASME B1.1, 2B

Ø’’ P P Ø Núcleo - Core Ø nut
Ø P Ø Núcleo - Core Ø nut  
 
d 1 TPI mm Ø mini Ø maxi Ø guide line
d 1 mm Ø mini Ø maxi Ø guide line 1 64 0.397 1.425 1.582 1.45
27 1.50 25.376 25.676 25.50 2 56 0.454 1.695 1.871 1.75
27 2.00 24.835 25.210 25.00 3 48 0.529 1.941 2.146 2.00
28 1.00 26.917 27.153 27.00 4 40 0.635 2.157 2.385 2.25
28 1.50 26.376 26.676 26.50 5 40 0.635 2.487 2.697 2.55
28 2.00 25.835 26.210 26.00 6 32 0.794 2.642 2.895 2.75
30 1.00 28.917 29.153 29.00 8 32 0.794 3.302 3.530 3.40
30 1.50 28.376 28.676 28.50 10 24 1.058 3.683 3.962 3.80
30 2.00 27.835 28.210 28.00 12 24 1.058 4.344 4.597 4.40
32 1.50 30.376 30.676 30.50 1/4’’ 20 1.270 4.979 5.257 5.10
32 2.00 29.835 30.210 30.00 5/16’’ 18 1.411 6.401 6.731 6.50
33 1.50 31.376 31.676 31.50 3/8’’ 16 1.588 7.798 8.153 8.00
33 2.00 30.835 31.210 31.00 7/16’’ 14 1.814 9.144 9.550 9.30
35 1.50 33.376 33.676 33.50 1/2’’ 13 1.954 10.592 11.023 10.80
36 1.50 34.376 34.676 34.50 9/16’’ 12 2.117 11.989 12.446 12.20
36 2.00 33.835 34.210 34.00 5/8’’ 11 2.309 13.386 13.868 13.60
36 3.00 32.752 33.252 33.00 3/4’’ 10 2.540 16.307 16.840 16.60
39 1.50 37.376 37.676 37.50 7/8’’ 9 2.822 19.177 19.761 19.50
39 2.00 36.835 37.210 37.00 1’’ 8 3.175 21.971 22.606 22.30
39 3.00 35.752 36.252 36.00 1 1/8’’ 7 3.629 24.638 25.349 25.00
40 1.50 38.376 38.676 38.50 1 1/4’’ 7 3.629 27.813 28.524 28.20
40 2.00 37.835 38.210 38.00 1 3/8’’ 6 4.233 30.353 31.115 30.80
40 3.00 36.752 37.252 37.00 1 1/2’’ 6 4.233 33.528 34.290 34.00
42 1.50 40.376 40.676 40.50 1 3/4’’ 5 5.080 38.964 39.827 39.50
42 2.00 39.835 40.210 40.00 2’’ 4.5 5.644 44.679 45.593 45.30
42 3.00 38.752 39.252 39.00
45 1.50 43.376 43.676 43.50
45 2.00 42.835 43.210 43.00 UNJC ISO 3161:1999, 3B
45 3.00 41.752 42.252 42.00 Ø’’
48 1.50 46.376 46.676 46.50 P P Ø Núcleo - Core Ø nut  
48 2.00 45.835 46.210 46.00
48 3.00 44.752 45.252 45.00 d 1 TPI mm Ø mini Ø maxi Ø guide line
50 1.50 48.376 48.676 48.50 4 40 0.635 2.228 2.393 2.30
50 2.00 47.835 48.210 48.00 5 40 0.635 2.558 2.723 2.60
50 3.00 46.752 47.252 47.00 6 32 0.794 2.733 2.939 2.80
52 1.50 50.376 50.676 50.50 8 32 0.794 3.393 3.599 3.45
52 2.00 49.835 50.210 50.00 10 24 1.058 3.795 4.064 3.90
52 3.00 48.752 49.252 49.00 12 24 1.058 4.455 4.704 4.55
55 2.00 52.835 53.210 53.00 1/4’’ 20 1.270 5.113 5.387 5.20
60 2.00 57.835 58.210 58.00 5/16’’ 18 1.411 6.563 6.833 6.70
3/8’’ 16 1.588 7.978 8.255 8.10
9.639
9.40
9.347
MF EN 60423:1994, 7H 7/16’’ 14 1.814 10.798 11.095 10.90
1/2’’
1.954
13
9/16’’ 12 2.117 12.228 12.482 12.40
Ø P Ø Núcleo - Core Ø nut
  5/8’’ 11 2.309 13.627 13.904 13.80
d 1 mm Ø mini Ø maxi Ø guide line 3/4’’ 10 2.540 16.576 16.881 16.70
8 1.00 6.917 7.217 7.00
10 1.00 8.917 9.217 9.00
12 1.50 10.376 10.751 10.50
16 1.50 14.376 14.751 14.50
20 1.50 18.376 18.751 18.50
25 1.50 23.376 23.751 23.50
32 1.50 30.376 30.751 30.50
40 1.50 38.376 38.751 38.50
63 1.50 61.376 61.751 61.50
