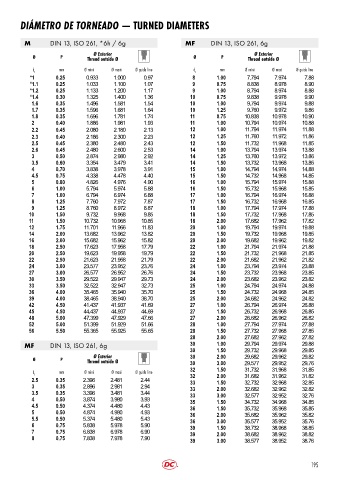

DIÁMETRO DE TORNEADO — TURNED DIAMETERS

M DIN 13, ISO 261, *6h / 6g MF DIN 13, ISO 261, 6g

Ø Exterior Ø Exterior
Ø P Thread outside Ø Ø P Thread outside Ø

d 1 mm Ø mini Ø maxi Ø guide line d 1 mm Ø mini Ø maxi Ø guide line
*1 0.25 0.933 1.000 0.97 8 1.00 7.794 7.974 7.88
*1.1 0.25 1.033 1.100 1.07 9 0.75 8.838 8.978 8.90
*1.2 0.25 1.133 1.200 1.17 9 1.00 8.794 8.974 8.88
*1.4 0.30 1.325 1.400 1.36 10 0.75 9.838 9.978 9.90
1.6 0.35 1.496 1.581 1.54 10 1.00 9.794 9.974 9.88
1.7 0.35 1.596 1.681 1.64 10 1.25 9.760 9.972 9.86
1.8 0.35 1.696 1.781 1.74 11 0.75 10.838 10.978 10.90
2 0.40 1.886 1.981 1.93 11 1.00 10.794 10.974 10.88
2.2 0.45 2.080 2.180 2.13 12 1.00 11.794 11.974 11.88
2.3 0.40 2.186 2.300 2.23 12 1.25 11.760 11.972 11.86
2.5 0.45 2.380 2.480 2.43 12 1.50 11.732 11.968 11.85
2.6 0.45 2.480 2.600 2.53 14 1.00 13.794 13.974 13.88
3 0.50 2.874 2.980 2.92 14 1.25 13.760 13.972 13.86
3.5 0.60 3.354 3.479 3.41 14 1.50 13.732 13.968 13.85
4 0.70 3.838 3.978 3.91 15 1.00 14.794 14.974 14.88
4.5 0.75 4.338 4.478 4.40 15 1.50 14.732 14.968 14.85
5 0.80 4.826 4.976 4.90 16 1.00 15.794 15.974 15.88
6 1.00 5.794 5.974 5.88 16 1.50 15.732 15.968 15.85
7 1.00 6.794 6.974 6.88 17 1.00 16.794 16.974 16.88
8 1.25 7.760 7.972 7.87 17 1.50 16.732 16.968 16.85
9 1.25 8.760 8.972 8.87 18 1.00 17.794 17.974 17.88
10 1.50 9.732 9.968 9.85 18 1.50 17.732 17.968 17.85
11 1.50 10.732 10.968 10.85 18 2.00 17.682 17.962 17.82
12 1.75 11.701 11.966 11.83 20 1.00 19.794 19.974 19.88
14 2.00 13.682 13.962 13.82 20 1.50 19.732 19.968 19.85
16 2.00 15.682 15.962 15.82 20 2.00 19.682 19.962 19.82
18 2.50 17.623 17.958 17.79 22 1.00 21.794 21.974 21.88
20 2.50 19.623 19.958 19.79 22 1.50 21.732 21.968 21.85
22 2.50 21.623 21.958 21.79 22 2.00 21.682 21.962 21.82
24 3.00 23.577 23.952 23.76 24 1.00 23.794 23.974 23.88
27 3.00 26.577 26.952 26.76 24 1.50 23.732 23.968 23.85
30 3.50 29.522 29.947 29.73 24 2.00 23.682 23.962 23.82
33 3.50 32.522 32.947 32.73 25 1.00 24.794 24.974 24.88
36 4.00 35.465 35.940 35.70 25 1.50 24.732 24.968 24.85
39 4.00 38.465 38.940 38.70 25 2.00 24.682 24.962 24.82
42 4.50 41.437 41.937 41.69 27 1.00 26.794 26.974 26.88
45 4.50 44.437 44.937 44.69 27 1.50 26.732 26.968 26.85
48 5.00 47.399 47.929 47.66 27 2.00 26.682 26.962 26.82
52 5.00 51.399 51.929 51.66 28 1.00 27.794 27.974 27.88
56 5.50 55.365 55.925 55.65 28 1.50 27.732 27.968 27.85
28 2.00 27.682 27.962 27.82
MF DIN 13, ISO 261, 6g 30 1.00 29.794 29.974 29.88
30 1.50 29.732 29.968 29.85
Ø Exterior 30 2.00 29.682 29.962 29.82
Ø P Thread outside Ø 30 3.00 29.577 29.952 29.76
32 1.50 31.732 31.968 31.85
d mm Ø mini Ø maxi Ø guide line
1 32 2.00 31.682 31.962 31.82
2.5 0.35 2.396 2.481 2.44 33 1.50 32.732 32.968 32.85
3 0.35 2.896 2.981 2.94 33 2.00 32.682 32.962 32.82
3.5 0.35 3.396 3.481 3.44 33 3.00 32.577 32.952 32.76
4 0.50 3.874 3.980 3.93 35 1.50 34.732 34.968 34.85
4.5 0.50 4.374 4.480 4.43 36 1.50 35.732 35.968 35.85
5 0.50 4.874 4.980 4.93 36 2.00 35.682 35.962 35.82
5.5 0.50 5.374 5.480 5.43 36 3.00 35.577 35.952 35.76
6 0.75 5.838 5.978 5.90 39 1.50 38.732 38.968 38.85
7 0.75 6.838 6.978 6.90 39 2.00 38.682 38.962 38.82
8 0.75 7.838 7.978 7.90 39 3.00 38.577 38.952 38.76
