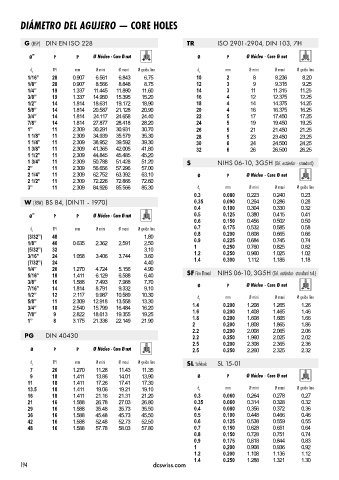

DIÁMETRO DEL AGUJERO — CORE HOLES

G (BSP) DIN EN ISO 228 TR ISO 2901-2904, DIN 103, 7H
Ø’’ P P Ø Núcleo - Core Ø nut Ø P Ø Núcleo - Core Ø nut
   
d 1 TPI mm Ø mini Ø maxi Ø guide line d 1 mm Ø mini Ø maxi Ø guide line
1/16’’ 28 0.907 6.561 6.843 6.75 10 2 8 8.236 8.20
1/8’’ 28 0.907 8.566 8.848 8.75 12 3 9 9.315 9.25
1/4’’ 19 1.337 11.445 11.890 11.60 14 3 11 11.315 11.25
3/8’’ 19 1.337 14.950 15.395 15.20 16 4 12 12.375 12.25
1/2’’ 14 1.814 18.631 19.172 18.90 18 4 14 14.375 14.25
5/8’’ 14 1.814 20.587 21.128 20.90 20 4 16 16.375 16.25
3/4’’ 14 1.814 24.117 24.658 24.40 22 5 17 17.450 17.25
7/8’’ 14 1.814 27.877 28.418 28.20 24 5 19 19.450 19.25
1’’ 11 2.309 30.291 30.931 30.70 26 5 21 21.450 21.25
1 1/8’’ 11 2.309 34.939 35.579 35.30 28 5 23 23.450 23.25
1 1/4’’ 11 2.309 38.952 39.592 39.30 30 6 24 24.500 24.25
1 3/8’’ 11 2.309 41.365 42.005 41.80 32 6 26 26.500 26.25
1 1/2’’ 11 2.309 44.845 45.485 45.20
1 3/4’’ 11 2.309 50.788 51.428 51.20 S NIHS 06-10, 3G5H (Tol. estándar - standard)
2’’ 11 2.309 56.656 57.296 57.00
2 1/4’’ 11 2.309 62.752 63.392 63.10 Ø P Ø Núcleo - Core Ø nut
2 1/2’’ 11 2.309 72.226 72.866 72.60  
3’’ 11 2.309 84.926 85.566 85.30 d 1 mm Ø mini Ø maxi Ø guide line
0.3 0.080 0.223 0.240 0.23
W (BSW) BS 84, (DIN11 - 1970) 0.35 0.090 0.264 0.286 0.28
0.4 0.100 0.304 0.330 0.32
Ø’’ P P Ø Núcleo - Core Ø nut 0.5 0.125 0.380 0.415 0.41
0.6 0.150 0.456 0.502 0.50
 
d 1 TPI mm Ø mini Ø maxi Ø guide line 0.7 0.175 0.532 0.585 0.58
(3/32’’) 48 1.80 0.8 0.200 0.608 0.665 0.66
1/8’’ 40 0.635 2.362 2.591 2.50 0.9 0.225 0.684 0.745 0.74
(5/32’’) 32 3.10 1 0.250 0.760 0.825 0.82
3/16’’ 24 1.058 3.406 3.744 3.60 1.2 0.250 0.960 1.025 1.02
(7/32’’) 24 4.40 1.4 0.300 1.112 1.185 1.18
1/4’’ 20 1.270 4.724 5.156 4.90
5/16’’ 18 1.411 6.129 6.588 6.40 SF Fine Thread NIHS 06-10, 3G5H (Tol. estándar- standard tol.)
3/8’’ 16 1.588 7.493 7.988 7.70 Ø Núcleo - Core Ø nut
7/16’’ 14 1.814 8.791 9.332 9.10 Ø P  
1/2’’ 12 2.117 9.987 10.589 10.30 d mm Ø mini Ø maxi Ø guide line
5/8’’ 11 2.309 12.918 13.558 13.30 1
3/4’’ 10 2.540 15.799 16.484 16.20 1.4 0.200 1.208 1.265 1.26
7/8’’ 9 2.822 18.613 19.355 19.25 1.6 0.200 1.408 1.465 1.46
1’’ 8 3.175 21.336 22.149 21.90 1.8 0.200 1.608 1.665 1.66
2 0.200 1.808 1.865 1.86
2.2 0.200 2.008 2.065 2.06
PG DIN 40430 2.2 0.250 1.960 2.025 2.02
2.5 0.200 2.308 2.365 2.36
Ø P P Ø Núcleo - Core Ø nut 2.5 0.250 2.260 2.325 2.32
 
d 1 TPI mm Ø mini Ø maxi Ø guide line SL Safelock SL 15-01
7 20 1.270 11.28 11.43 11.35
9 18 1.411 13.86 14.01 13.90 Ø P Ø Núcleo - Core Ø nut  
11 18 1.411 17.26 17.41 17.30
13.5 18 1.411 19.06 19.21 19.10 d 1 mm Ø mini Ø maxi Ø guide line
16 18 1.411 21.16 21.31 21.20 0.3 0.060 0.264 0.278 0.27
21 16 1.588 26.78 27.03 26.80 0.35 0.060 0.314 0.328 0.32
29 16 1.588 35.48 35.73 35.50 0.4 0.080 0.356 0.372 0.36
36 16 1.588 45.48 45.73 45.50 0.5 0.100 0.448 0.466 0.46
42 16 1.588 52.48 52.73 52.50 0.6 0.125 0.538 0.559 0.55
48 16 1.588 57.78 58.03 57.80 0.7 0.150 0.628 0.651 0.64
0.8 0.150 0.728 0.751 0.74
0.9 0.175 0.818 0.844 0.83
1 0.200 0.908 0.936 0.92
1.2 0.200 1.108 1.136 1.12
1.4 0.250 1.288 1.321 1.30
