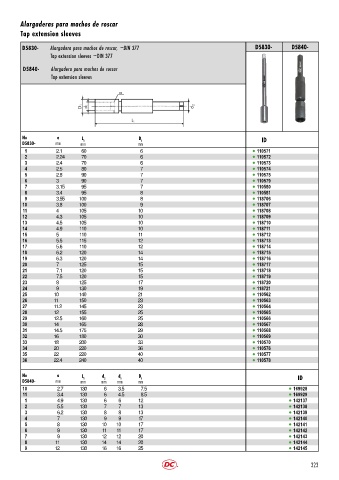

Alargaderas para machos de roscar
Tap extension sleeves

D5830- Alargadera para machos de roscar, DIN 377 D5830- D5840-
~
Tap extension sleeves DIN 377
~
D5840- Alargadera para machos de roscar
Tap extension sleeves

No a L D ID
D5830- mm mm 1 mm 1
1 2.1 60 6 l 110571
2 2.24 70 6 l 110572
3 2.4 70 6 l 110573
4 2.5 80 7 l 110574
5 2.8 90 7 l 110575
6 3 90 7 l 110579
7 3.15 95 7 l 110580
8 3.4 95 8 l 110581
9 3.55 100 8 l 118706
10 3.8 100 9 l 118707
11 4 105 10 l 118708
12 4.3 105 10 l 118709
13 4.5 105 10 l 118710
14 4.9 110 10 l 118711
15 5 110 11 l 118712
16 5.5 115 12 l 118713
17 5.6 110 12 l 118714
18 6.2 120 14 l 118715
19 6.3 120 14 l 118716
20 7 125 15 l 118717
21 7.1 120 15 l 118718
22 7.5 120 15 l 118719
23 8 125 17 l 118720
24 9 130 19 l 118721
25 10 140 21 l 110562
26 11 150 23 l 110563
27 11.2 145 23 l 110564
28 12 155 25 l 110565
29 12.5 160 25 l 110566
30 14 165 28 l 110567
31 14.5 175 29 l 110568
32 16 180 30 l 110569
33 18 200 33 l 110570
34 20 220 36 l 110576
35 22 220 40 l 110577
36 22.4 240 40 l 110578

No a L 1 d 2 d 1 D 1 ID
D5840- mm mm mm mm mm
10 2.7 130 6 3.5 7.5 l 169928
11 3.4 130 6 4.5 8.5 l 169929
1 4.9 130 6 6 12 l 142137
2 5.5 130 7 7 13 l 142138
3 6.2 130 8 8 13 l 142139
4 7 130 9 9 17 l 142140
5 8 130 10 10 17 l 142141
6 9 130 11 11 17 l 142142
7 9 130 12 12 20 l 142143
8 11 130 14 14 20 l 142144
9 12 130 16 16 25 l 142145
