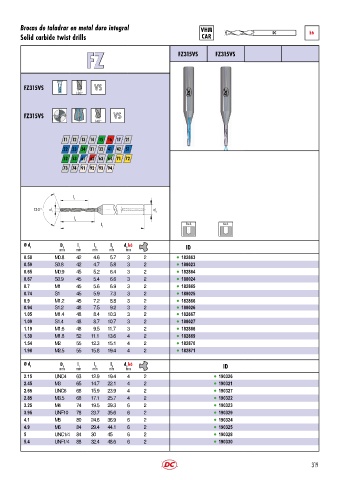

Brocas de taladrar en metal duro integral VHM
Solid carbide twist drills CAR DC h6

FZ FZ315VS FZ315VS

FZ315VS VS

FZ315VS VS

11 12 13 14 15 16 17 21
22 23 24 31 32 41 42 51
52 53 61 63 71 72
73 74 91 92 93 94

Ø d D l l l d h6
1 1 1 2 3 2 ID
mm mm mm mm mm
0.58 M0.8 42 4.6 5.7 3 2 l 182863
0.59 S0.8 42 4.7 5.8 3 2 l 188023
0.65 M0.9 45 5.2 6.4 3 2 l 182864
0.67 S0.9 45 5.4 6.6 3 2 l 188024
0.7 M1 45 5.6 6.9 3 2 l 182865
0.74 S1 45 5.9 7.3 3 2 l 188025
0.9 M1.2 45 7.2 8.8 3 2 l 182866
0.94 S1.2 48 7.5 9.2 3 2 l 188026
1.05 M1.4 48 8.4 10.3 3 2 l 182867
1.09 S1.4 48 8.7 10.7 3 2 l 188027
1.19 M1.6 48 9.5 11.7 3 2 l 182868
1.39 M1.8 52 11.1 13.6 4 2 l 182869
1.54 M2 55 12.3 15.1 4 2 l 182870
1.98 M2.5 55 15.8 19.4 4 2 l 182871

Ø d D l l l d h6
1 1 1 2 3 2 ID
mm mm mm mm mm
2.15 UNC4 63 12.9 19.4 4 2 l 190326
2.45 M3 65 14.7 22.1 4 2 l 190321
2.65 UNC6 68 15.9 23.9 4 2 l 190327
2.85 M3.5 68 17.1 25.7 4 2 l 190322
3.25 M4 74 19.5 29.3 6 2 l 190323
3.95 UNF10 78 23.7 35.6 6 2 l 190329
4.1 M5 80 24.6 36.9 6 2 l 190324
4.9 M6 84 29.4 44.1 6 2 l 190325
5 UNC1/4 84 30 45 6 2 l 190328
5.4 UNF1/4 88 32.4 48.6 6 2 l 190330
