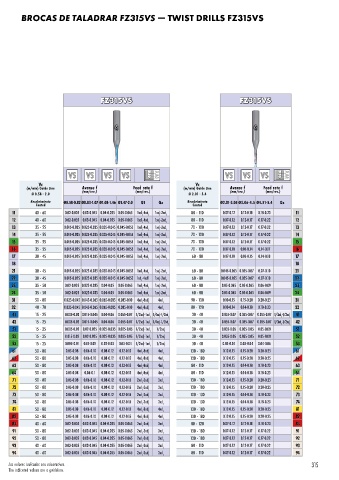

BROCAS DE TALADRAR FZ315VS ž TWIST DRILLS FZ315VS

FZ315VS FZ315VS

Q1
Clasificación de los materiales Material classification VS VS VS VS Qx VS VS VS Q1
Qx
Qx
Qx
Vc Vc
(m/min) Guide Line Avance f Feed rate f (m/min) Guide Line Avance f Feed rate f
Ø 0.58 • 2.0 (mm/rev.) (mm/rev.) Ø 2.01 • 5.4 (mm/rev.) (mm/rev.)
Recubrimiento Ø0.58•0.82 Ø0.83•1.07 Ø1.08•1.46 Ø1.47•2.0 Q1 Qx Recubrimiento Ø2.01•3.05 Ø3.06•4.5 Ø4.51•5.4 Qx
Coated Coated
11 40 - 60 0.02-0.035 0.03-0.045 0.04-0.055 0.05-0.065 1xd -4xd 1 1xd -2xd 1 80 - 110 0.07-0.12 0.12-0.18 0.18-0.23 11
1
1
12 40 - 60 0.02-0.035 0.03-0.045 0.04-0.055 0.05-0.065 1xd -4xd 1 1xd -2xd 1 80 - 110 0.07-0.12 0.12-0.17 0.17-0.22 12
1
1
13 35 - 55 0.015-0.025 0.025-0.035 0.035-0.045 0.045-0.055 1xd -4xd 1xd -2xd 70 - 100 0.07-0.12 0.12-0.17 0.17-0.22 13
1 1 1 1
14 35 - 55 0.015-0.025 0.025-0.035 0.035-0.045 0.045-0.055 1xd -4xd 1 1xd -2xd 1 70 - 100 0.07-0.12 0.12-0.17 0.17-0.22 14
1
1
15 35 - 55 0.015-0.025 0.025-0.035 0.035-0.045 0.045-0.055 1xd -4xd 1 1xd -2xd 1 70 - 100 0.07-0.12 0.12-0.17 0.17-0.22 15
1
1
16 35 - 55 0.015-0.025 0.025-0.035 0.035-0.045 0.045-0.055 1xd -4xd 1 1xd -2xd 1 70 - 100 0.07-0.10 0.10-0.14 0.14-0.17 16
1
1
17 30 - 45 0.015-0.025 0.025-0.035 0.035-0.045 0.045-0.055 1xd -4xd 1xd -2xd 60 - 80 0.07-0.10 0.10-0.15 0.14-0.18 17
1 1 1 1
18 18
21 30 - 45 0.015-0.025 0.025-0.035 0.035-0.045 0.045-0.055 1xd -4xd 1 1xd -2xd 1 60 - 80 0.045-0.055 0.055-0.07 0.07-0.10 21
1
1
22 30 - 45 0.015-0.025 0.025-0.035 0.035-0.045 0.045-0.055 1xd -4xd1 1xd -2xd 1 60 - 80 0.045-0.055 0.055-0.07 0.07-0.10 22
1
1
23 35 - 50 0.02-0.025 0.025-0.035 0.04-0.05 0.05-0.065 1xd -4xd 1xd -2xd 60 - 80 0.05-0.065 0.05-0.065 0.06-0.09 23
1 1 1 1
24 35 - 50 0.02-0.025 0.025-0.035 0.04-0.05 0.05-0.065 1xd -4xd 1 1xd -2xd 1 60 - 80 0.05-0.065 0.05-0.065 0.06-0.09 24
1
1
31 50 - 80 0.025-0.045 0.045-0.065 0.065-0.085 0.085-0.10 4xd -8xd 1 4xd 1 90 - 130 0.10-0.15 0.15-0.20 0.20-0.25 31
1
32 40 - 70 0.025-0.045 0.045-0.065 0.065-0.085 0.085-0.10 4xd -8xd 1 4xd 1 80 - 120 0.10-0.14 0.14-0.18 0.18-0.23 32
1
41 15 - 25 0.005-0.02 0.015-0.045 0.04-0.06 0.055-0.07 1/2xd -1xd 1/4xd-1/2xd 30 - 40 0.055-0.07 0.055-0.07 0.055-0.07 1/3xd-1/2xd 41
1 1 1 1 1 1
42 15 - 25 0.005-0.02 0.015-0.045 0.04-0.06 0.055-0.07 1/2xd -1xd 1/4xd-1/2xd 1 30 - 40 0.055-0.07 0.055-0.07 0.055-0.07 1/3xd-1/2xd 1 42
1
1
1
1
51 15 - 25 0.005-0.02 0.02-0.025 0.025-0.035 0.035-0.05 1/2xd -1xd 1 1/2xd 1 30 - 40 0.035-0.05 0.035-0.05 0.05-0.08 51
1
52 15 - 25 0.015-0.02 0.02-0.025 0.025-0.035 0.035-0.05 1/2xd -1xd 1 1/2xd 1 30 - 40 0.035-0.05 0.035-0.05 0.05-0.08 52
1
53 15 - 25 0.005-0.01 0.01-0.02 0.02-0.03 0.03-0.04 1/2xd -1xd 1/2xd 30 - 40 0.03-0.04 0.03-0.04 0.04-0.06 53
1 1 1
61 50 - 80 0.05-0.08 0.06-0.10 0.08-0.12 0.12-0.15 4xd -8xd 1 4xd 1 130 - 180 0.12-0.15 0.15-0.20 0.20-0.25 61
1
62 50 - 80 0.05-0.08 0.06-0.10 0.08-0.12 0.12-0.15 4xd -8xd 1 4xd 1 130 - 180 0.12-0.15 0.15-0.20 0.20-0.25 62
1
63 50 - 80 0.05-0.08 0.06-0.10 0.08-0.12 0.12-0.15 4xd -8xd 1 4xd 1 80 - 110 0.12-0.15 0.14-0.18 0.18-0.23 63
1
64 50 - 80 0.05-0.08 0.06-0.1 0.08-0.12 0.12-0.15 4xd -8xd 1 4xd 1 80 - 110 0.12-0.15 0.14-0.18 0.18-0.23 64
1
71 50 - 80 0.05-0.08 0.06-0.10 0.08-0.12 0.12-0.15 2xd -3xd 3xd 130 - 180 0.12-0.15 0.15-0.20 0.20-0.25 71
1 1 1
72 50 - 80 0.05-0.08 0.06-0.10 0.08-0.12 0.12-0.15 2xd -3xd 1 3xd 1 130 - 180 0.12-0.15 0.15-0.20 0.20-0.25 72
1
73 50 - 80 0.05-0.08 0.06-0.10 0.08-0.12 0.12-0.15 2xd -3xd 1 3xd 1 100 - 130 0.12-0.15 0.14-0.18 0.18-0.23 73
1
74 50 - 80 0.05-0.08 0.06-0.10 0.08-0.12 0.12-0.15 2xd -3xd 3xd 100 - 130 0.12-0.15 0.14-0.18 0.18-0.23 74
1 1 1
81 50 - 80 0.05-0.08 0.06-0.10 0.08-0.12 0.12-0.15 4xd -8xd 4xd 130 - 180 0.12-0.15 0.15-0.20 0.20-0.25 81
1 1 1
82 50 - 80 0.05-0.08 0.06-0.10 0.08-0.12 0.12-0.15 4xd -8xd 1 4xd 1 130 - 180 0.12-0.15 0.15-0.20 0.20-0.25 82
1
83 40 - 60 0.02-0.035 0.03-0.045 0.04-0.055 0.05-0.065 2xd -3xd 1 3xd 1 80 - 120 0.07-0.12 0.12-0.18 0.18-0.23 83
1
91 50 - 80 0.02-0.035 0.03-0.045 0.04-0.055 0.05-0.065 2xd -3xd 1 3xd 1 130 - 180 0.07-0.12 0.12-0.17 0.17-0.22 91
1
92 50 - 80 0.02-0.035 0.03-0.045 0.04-0.055 0.05-0.065 2xd -3xd 3xd 130 - 180 0.07-0.12 0.12-0.17 0.17-0.22 92
1 1 1
93 40 - 60 0.02-0.035 0.03-0.045 0.04-0.055 0.05-0.065 2xd -3xd 1 3xd 1 80 - 110 0.07-0.12 0.12-0.17 0.17-0.22 93
1
94 40 - 60 0.02-0.035 0.03-0.045 0.04-0.055 0.05-0.065 2xd -3xd 1 3xd 1 80 - 110 0.07-0.12 0.12-0.17 0.17-0.22 94
1
Los valores indicados son orientativos. 315
The indicated values are a guideline.
