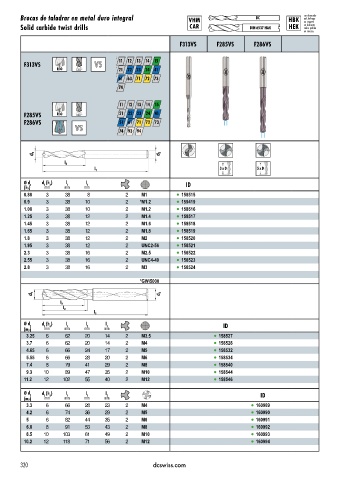

Page 323 - DC_SWISS(Catalogue_TM_ES-EN)

Brocas de taladrar en metal duro integral VHM DC sur demande
auf Anfrage
on request
Solid carbide twist drills CAR DIN 6537 HAK su richiesta
sobre pedido
по заказу
F313VS F285VS F286VS

F313VS VS 11 12 13 14 15
R30 21 22 23 24 41
61 63 71 72 73
74

11 12 13 14 15
F285VS R30 21 22 23 24 41
F286VS 51 61 71 72 73
VS 74 93 94

Ø d 1 d (h ) l 1 l 2 ID
2
6
(h 7) mm mm mm
0.88 3 38 8 2 M1 l 158515
0.9 3 38 10 2 *M1.2 l 159419
1.08 3 38 10 2 M1.2 l 158516
1.25 3 38 12 2 M1.4 l 158517
1.45 3 38 12 2 M1.6 l 158518
1.65 3 38 12 2 M1.8 l 158519
1.8 3 38 12 2 M2 l 158520
1.95 3 38 12 2 UNC2-56 l 158521
2.3 3 38 16 2 M2.5 l 158522
2.55 3 38 16 2 UNC4-40 l 158523
2.8 3 38 16 2 M3 l 158524

*GWi5000

Ø d 1 d (h ) l 1 l 2 l 3 ID
2
6
(m 7) mm mm mm mm
3.25 6 62 20 14 2 M3.5 l 158527
3.7 6 62 20 14 2 M4 l 158528
4.65 6 66 24 17 2 M5 l 158532
5.55 6 66 28 20 2 M6 l 158534
7.4 8 79 41 29 2 M8 l 158540
9.3 10 89 47 35 2 M10 l 158544
11.2 12 102 55 40 2 M12 l 158546

Ø d 1 d (h ) l 1 l 2 l 3 ID
2
6
(m 7) mm mm mm mm
3.3 6 66 28 23 2 M4 l 160989
4.2 6 74 36 29 2 M5 l 160990
5 6 82 44 35 2 M6 l 160991
6.8 8 91 53 43 2 M8 l 160992
8.5 10 103 61 49 2 M10 l 160993
10.2 12 118 71 56 2 M12 l 160994
