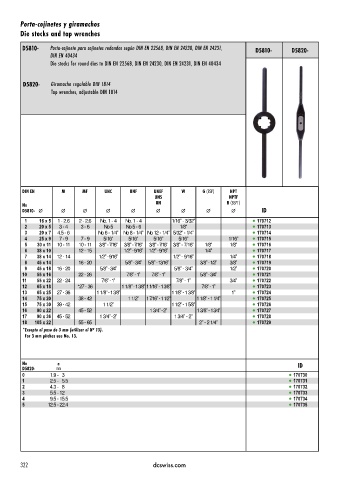

Page 325 - DC_SWISS(Catalogue_TM_ES-EN)

Porta-cojinetes y giramachos
Die stocks and tap wrenches

D5810- Porta-cojinete para cojinetes redondos según DIN EN 22568, DIN EN 24230, DIN EN 24231, D5810- D5820-
DIN EN 40434
Die stocks for round dies to DIN EN 22568, DIN EN 24230, DIN EN 24231, DIN EN 40434

D5820- Giramacho regulable DIN 1814
Tap wrenches, adjustable DIN 1814

DIN EN M MF UNC UNF UNEF W G (BSP) NPT
UNS NPTF
No UN R (BSPT)
D5810- Ø Ø Ø Ø Ø Ø Ø Ø Ø ID
1 16 x 5 1 - 2.6 2 - 2.6 No. 1 - 4 No. 1 - 4 1/16’’ - 3/32’’ l 170712
2 20 x 5 3 - 4 3 - 6 No 5 No 5 - 6 1/8’’ l 170713
3 20 x 7 4.5 - 6 No 6 - 1/4’’ No 8 - 1/4’’ No 12 - 1/4’’ 5/32’’ - 1/4’’ l 170714
4 25 x 9 7 - 9 7 - 9 5/16’’ 5/16’’ 5/16’’ 5/16’’ 1/16’’ l 170715
5 30 x 11 10 - 11 10 - 11 3/8’’ - 7/16’’ 3/8’’ - 7/16’’ 3/8’’ - 7/16’’ 3/8’’ - 7/16’’ 1/8’’ 1/8’’ l 170716
6 38 x 10 12 - 15 1/2’’ - 9/16’’ 1/2’’ - 9/16’’ 1/4’’ l 170717
7 38 x 14 12 - 14 1/2’’ - 9/16’’ 1/2’’ - 9/16’’ 1/4’’ l 170718
8 45 x 14 16 - 20 5/8’’ - 3/4’’ 5/8’’ - 13/16’’ 3/8’’ - 1/2’’ 3/8’’ l 170719
9 45 x 18 16 - 20 5/8’’ - 3/4’’ 5/8’’ - 3/4’’ 1/2’’ l 170720
10 55 x 16 22 - 26 7/8’’ - 1’’ 7/8’’ - 1’’ 5/8’’ - 3/4’’ l 170721
11 55 x 22 22 - 24 7/8’’ - 1’’ 7/8’’ - 1’’ 3/4’’ l 170722
12 65 x 18 *27 - 36 1 1/8’’ - 1 3/8’’ 1 1/16’’ - 1 3/8’’ 7/8’’ - 1’’ l 170723
13 65 x 25 27 - 36 1 1/8’’ - 1 3/8’’ 1 1/8’’ - 1 3/8’’ 1’’ l 170724
14 75 x 20 38 - 42 1 1/2’’ 1 7/16’’ - 1 1/2’’ 1 1/8’’ - 1 1/4’’ l 170725
15 75 x 30 39 - 42 1 1/2’’ 1 1/2’’ - 1 5/8’’ l 170726
16 90 x 22 45 - 52 1 3/4’’ - 2’’ 1 3/8’’ - 1 3/4’’ l 170727
17 90 x 36 45 - 52 1 3/4’’ - 2’’ 1 3/4’’ - 2’’ l 170728
18 105 x 22 55 - 65 2’’ - 2 1/4’’ l 170729
*Excepto el paso de 3 mm (utilizar el Nº 13).
*For 3 mm pitches use No. 13.

No a ID
D5820- mm
0 1.9 - 3 l 170730
1 2.5 - 5.5 l 170731
2 4.3 - 8 l 170732
3 5.5 - 12 l 170733
4 9.5 - 15.5 l 170734
5 12.5 - 22.4 l 170735
