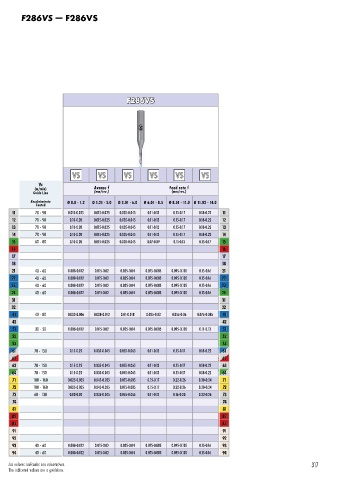

Page 320 - DC_SWISS(Catalogue_TM_ES-EN)

F286VS ž F286VS

F286VS

Clasificación de los materiales Material classification VS VS VS VS VS VS
Vc
(m/min) Avance f Feed rate f
Guide Line (mm/rev.) (mm/rev.)
Recubrimiento Ø 0.8 • 1.2 Ø 1.21 • 3.0 Ø 3.01 • 6.0 Ø 6.01 • 8.5 Ø 8.51 • 11.0 Ø 11.02 • 14.0
Coated
11 70 - 90 0.015-0.025 0.015-0.025 0.035-0.045 0.11-0.13 0.15-0.17 0.18-0.22 11
12 70 - 90 0.10-0.20 0.015-0.025 0.035-0.045 0.11-0.13 0.15-0.17 0.18-0.22 12
13 70 - 90 0.10-0.20 0.015-0.025 0.035-0.045 0.11-0.13 0.15-0.17 0.18-0.22 13
14 70 - 90 0.10-0.20 0.015-0.025 0.035-0.045 0.11-0.13 0.15-0.17 0.18-0.22 14
15 60 - 80 0.10-0.20 0.015-0.025 0.035-0.045 0.07-0.09 0.11-0.13 0.15-0.17 15
16 16
17 17
18 18
21 40 - 60 0.008-0.012 0.015-0.02 0.035-0.04 0.075-0.085 0.095-0.105 0.15-0.16 21
22 40 - 60 0.008-0.012 0.015-0.02 0.035-0.04 0.075-0.085 0.095-0.105 0.15-0.16 22
23 40 - 60 0.008-0.012 0.015-0.02 0.035-0.04 0.075-0.085 0.095-0.105 0.15-0.16 23
24 40 - 60 0.008-0.012 0.015-0.02 0.035-0.04 0.075-0.085 0.095-0.105 0.15-0.16 24
31 31
32 32
41 40 - 80 0.003-0.006 0.008-0.012 0.01-0.018 0.025-0.03 0.055-0.06 0.075-0.085 41
42 42
51 30 - 50 0.008-0.012 0.015-0.02 0.035-0.04 0.075-0.085 0.095-0.105 0.11-0.13 51
52 52
53 53
61 70 - 150 0.15-0.25 0.035-0.045 0.055-0.065 0.11-0.13 0.15-0.17 0.18-0.22 61
62 62
63 70 - 150 0.15-0.25 0.035-0.045 0.055-0.065 0.11-0.13 0.15-0.17 0.18-0.22 63
64 70 - 150 0.15-0.25 0.035-0.045 0.055-0.065 0.11-0.13 0.15-0.17 0.18-0.22 64
71 100 - 160 0.025-0.035 0.045-0.055 0.075-0.085 0.15-0.17 0.22-0.26 0.30-0.34 71
72 100 - 160 0.025-0.035 0.045-0.055 0.075-0.085 0.15-0.17 0.22-0.26 0.30-0.34 72
73 60 - 130 0.02-0.03 0.035-0.045 0.055-0.065 0.11-0.13 0.16-0.20 0.22-0.26 73
74 74
81 81
82 82
83 83
91 91
92 92
93 40 - 60 0.008-0.012 0.015-0.02 0.035-0.04 0.075-0.085 0.095-0.105 0.15-0.16 93
94 40 - 60 0.008-0.012 0.015-0.02 0.035-0.04 0.075-0.085 0.095-0.105 0.15-0.16 94
Los valores indicados son orientativos. 317
The indicated values are a guideline.
