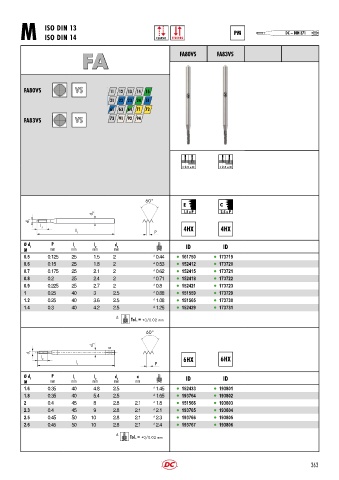

Page 366 - DC_SWISS(Catalogue_TM_ES-EN)

ISO DIN 13
M ISO DIN 14 CLASSIC SYNCHRO PM DC – DIN 371

FA FA80VS FA83VS

FA80VS VS 11 12 13 14 15
21 22 23 24 51
61 63 71 72

FA83VS VS 73 91 92 94

< 2.5 x D < 2.5 x D

C
1.5 x P 2.5 x P
d 2
d 1
l
2
l
1 P
Ø d 1 P l 1 l 2 d 2 ID ID
M mm mm mm mm
0.5 0.125 25 1.5 2 ∆ 0.44 l 161750 l 173719
0.6 0.15 25 1.8 2 ∆ 0.53 l 152412 l 173720
0.7 0.175 25 2.1 2 ∆ 0.62 l 152415 l 173721
0.8 0.2 25 2.4 2 ∆ 0.71 l 152418 l 173722
0.9 0.225 25 2.7 2 ∆ 0.8 l 152421 l 173723
1 0.25 40 3 2.5 ∆ 0.88 l 151559 l 173729
1.2 0.25 40 3.6 2.5 ∆ 1.08 l 151565 l 173730
1.4 0.3 40 4.2 2.5 ∆ 1.25 l 152429 l 173731

∆
Tol. = +0/0.02 mm

d 2 a
d 1
l 2
l P
1
Ø d 1 P l 1 l 2 d 2 a ID ID
M mm mm mm mm mm
1.6 0.35 40 4.8 2.5 ∆ 1.45 l 152433 l 193801
1.8 0.35 40 5.4 2.5 ∆ 1.65 l 193764 l 193802
2 0.4 45 8 2.8 2.1 ∆ 1.8 l 151566 l 193803
2.3 0.4 45 9 2.8 2.1 ∆ 2.1 l 193765 l 193804
2.5 0.45 50 10 2.8 2.1 ∆ 2.3 l 193766 l 193805
2.6 0.45 50 10 2.8 2.1 ∆ 2.4 l 193767 l 193806

∆
Tol. = +0/0.02 mm

363
