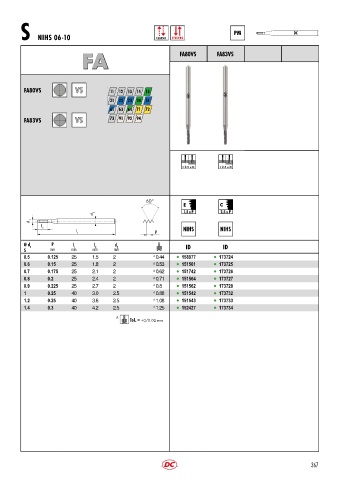

Page 370 - DC_SWISS(Catalogue_TM_ES-EN)

PM DC
S NIHS 06-10 CLASSIC SYNCHRO

FA FA80VS FA83VS

FA80VS VS 11 12 13 14 15
21 22 23 24 51
61 63 71 72

FA83VS VS 73 91 92 94

< 2.5 x D < 2.5 x D

C
1.5 x P 2.5 x P
d 2
d 1
l 2
l P NIHS NIHS
1
Ø d 1 P l 1 l 2 d 2 ID ID
S mm mm mm mm
0.5 0.125 25 1.5 2 ∆ 0.44 l 158977 l 173724
0.6 0.15 25 1.8 2 ∆ 0.53 l 151561 l 173725
0.7 0.175 25 2.1 2 ∆ 0.62 l 151742 l 173726
0.8 0.2 25 2.4 2 ∆ 0.71 l 151564 l 173727
0.9 0.225 25 2.7 2 ∆ 0.8 l 151562 l 173728
1 0.25 40 3.0 2.5 ∆ 0.88 l 151542 l 173732
1.2 0.25 40 3.6 2.5 ∆ 1.08 l 151543 l 173733
1.4 0.3 40 4.2 2.5 ∆ 1.25 l 152427 l 173734
∆
Tol. = +0/0.02 mm
